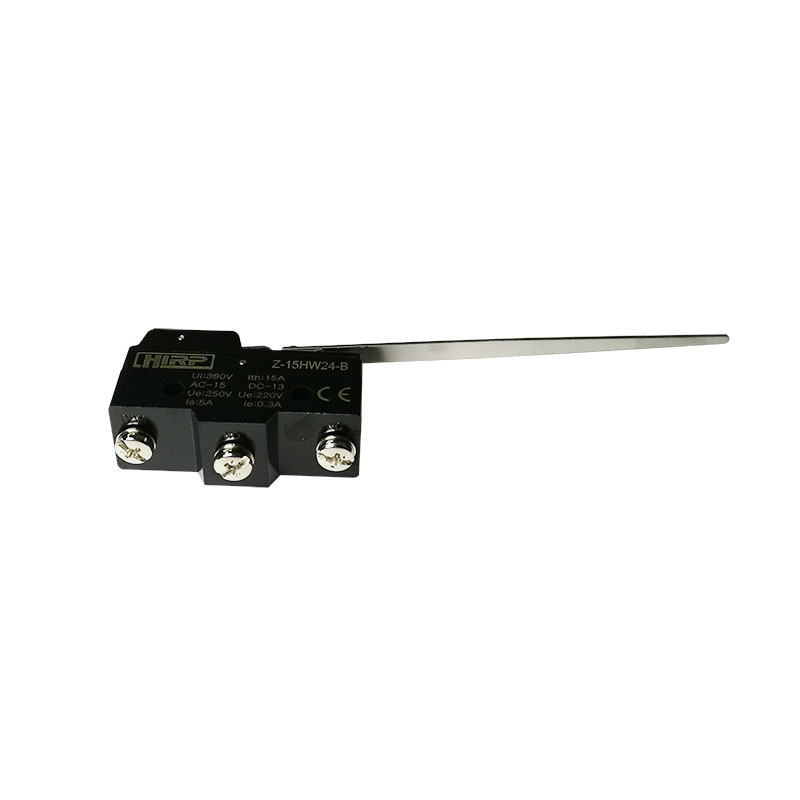

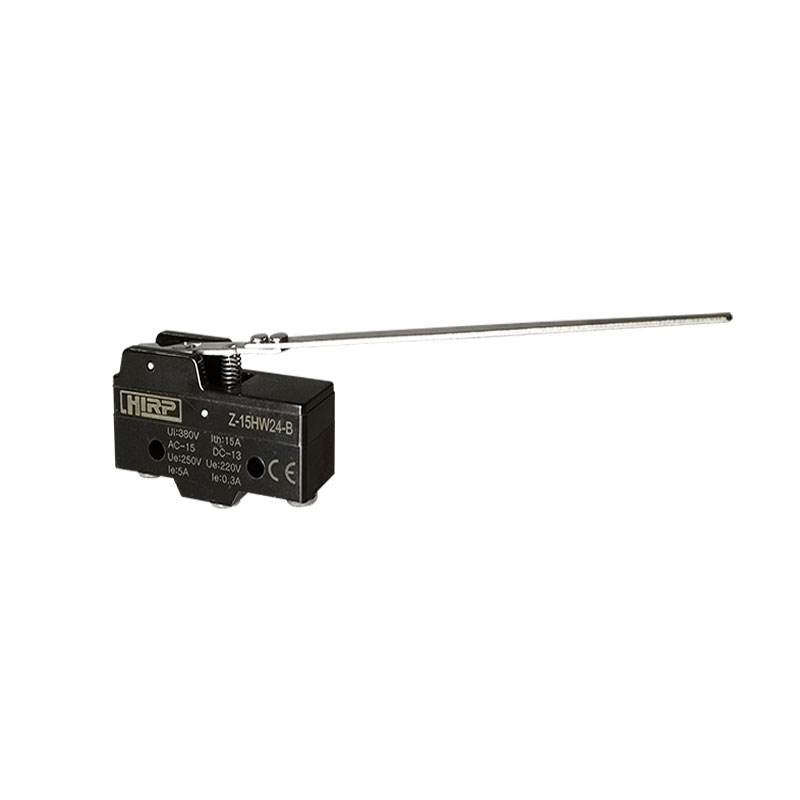

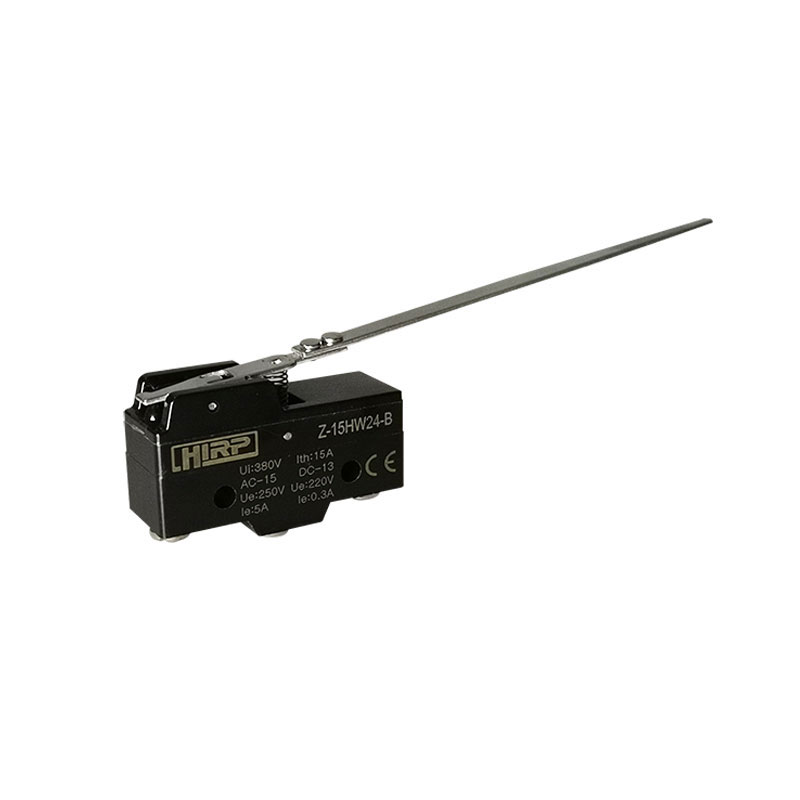

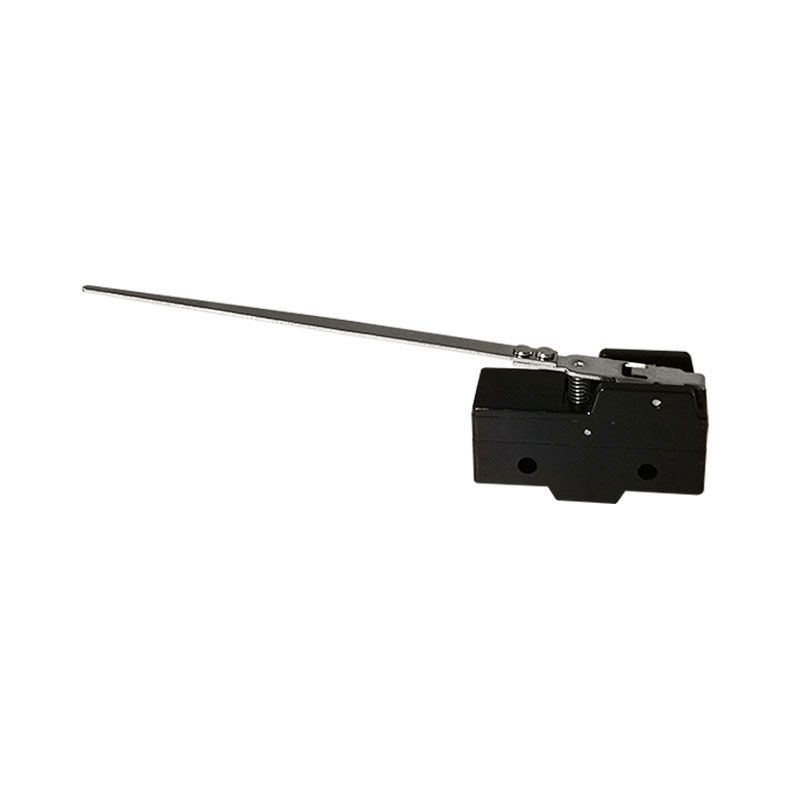

Travel Waterproof High Limit Micro Switch Lever
- Model Number
- Z-15HW24-B
- Electricity Type
- AC
- Max voltage
- 250V
- Max Current
- 15A
- IP Grade
- IP40
- Warranty
- 1 year
- Frequency
- 50/60HZ
- Certificate
- CE,CCC
- Place of Origin
- Zhejiang, China
Introducing our latest and high-quality micro switch Z-15HW24-B type.Tight configuration, small contact gap, snap action.High sensitivity and small operating travel.Long life, high reliability.
Micro Limit Switch Z-15HW24-B type with high-quality 15A 250VAC
This is a limit micro switch with thickened brass guide, high sensitivity, long lasting life expectancy and high reliability, the design is easy for operate. Geneal purpose micro switches are used in AC control circuits of 50 or 60Hz, with a voltage up to 380V and rated control capacity of 100VA or in DC control cirucits with a voltage up to 220V and a rated control capacity of 10W. It is widely used and often plays an irreplaceable role.
Specification :
- Mechanical Life：1,000,000 operations min
- Electrical life：100,000 operations min
- Ambient Temperature：-25°C to +80°C
- Color：Black
- Contact Type：SPDT
- Weight：0.05kg/pcs
Characteristics:
- Operation Speed: 0.01mm-1m/s
- Operation Frequency:
Mechanical: 240 operations/minute;
Electrical: 20 operations/minute - Contact Resistance: 15Ω max.(initial value)
- Insulation Resistance: 100Ω min.(at 500VDC)
- Dieletric Strength:
1000VAC, 50/60Hz for 1 minute between terminals of the same polarity;
1,500VAC, 50/60Hz for 1minute between current-carrying and non-current-carrying metal parts;
1,500VAC, 50/60Hz for 1minute between each terminal and groun - Vibration: 10-55Hz, 1.5mm double amplitude
- Shock:
Mechanical Durability:1,000m/Sec2(about 100G'S);
Malfunction: 300m/Sec2(about 30G'S). - Ambient Temperature:
General purpose type: -25°C to +80°C;
Sealed type: -15°C to +80°C. - Humidity:
General purpose type: 85% RH max.
Sealed type: 95% RH max. -
Weight: About 22 to 58g
Z-15G series Features:
- Fireproof and flame-retardant, pure silver contacts, smooth movement, collision and drop resistance.
- A large switching capacity of 15A with high repeal accurancy.
- A wide range of varlation in contact form for your selection:basic,split-contact,maintained-contact,and adjustable contact gap types.
- A series of standard models for micro loads is available.
- A series of molded terminal-type models incorporating safety terminal protective cover is available.
Ratings:
Characteristics:
| Operation Speed | 0.01mm-1m/s |
| Operation Frequency | Mechanical: 240 operations/minute; Electrical: 20 operations/minute |
| Contact Resistance | 15Ω max.(initial value) |
| Insulation Resistance | 100Ω min.(at 500VDC) |
| Dielectric Strength | 1000VAC, 50/60Hz for 1 minute between terminals of the same polarity |
| 1500VAC, 50/60Hz for 1 minute between current-carrying and non-current-carrying metal parts | |
| 1500VAC, 50/60Hz for 1 minute between each terminal and ground | |
| Vibration | 10-55Hz, 1.5mm double amplitude |
| Shock | Mechanical Durable: 1,000m/Sec2(about 100G'S); Malfunction: 300m/Sec2(about 30G'S) |
| Ambient Temperature | General purpose type: -25°C to +80°C; Sealed type: -15°C to +80°C. |
| Humidity | General purpose type: 85% RH max. Sealed type: 95% RH max. |
| Weight | About 22 to 58g |
Operating Characteristics:
| Operating Characteristics | Model | Z-15HW24-B |
| Operation Force | OF(Max) | 58.8N |
| Restoring Force | RF(Min) | 4.9N |
| Pre Travel | PT(Max) | 19.8mm |
| Over Travel | OT(Min) | 10mm |
| Movement Differential | MD(Max) | 2mm |
| Operating Position | OP | 18.8±1.6(mm) |

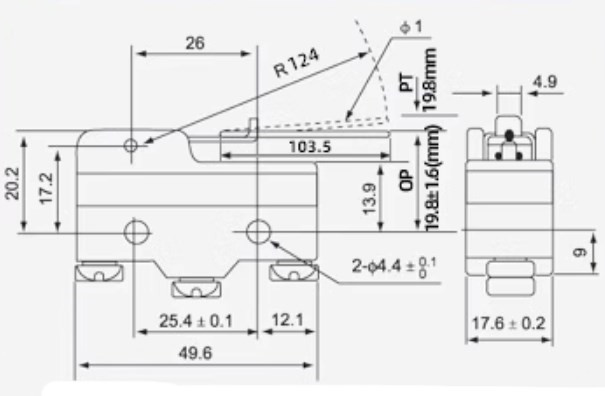

Product drawings:
