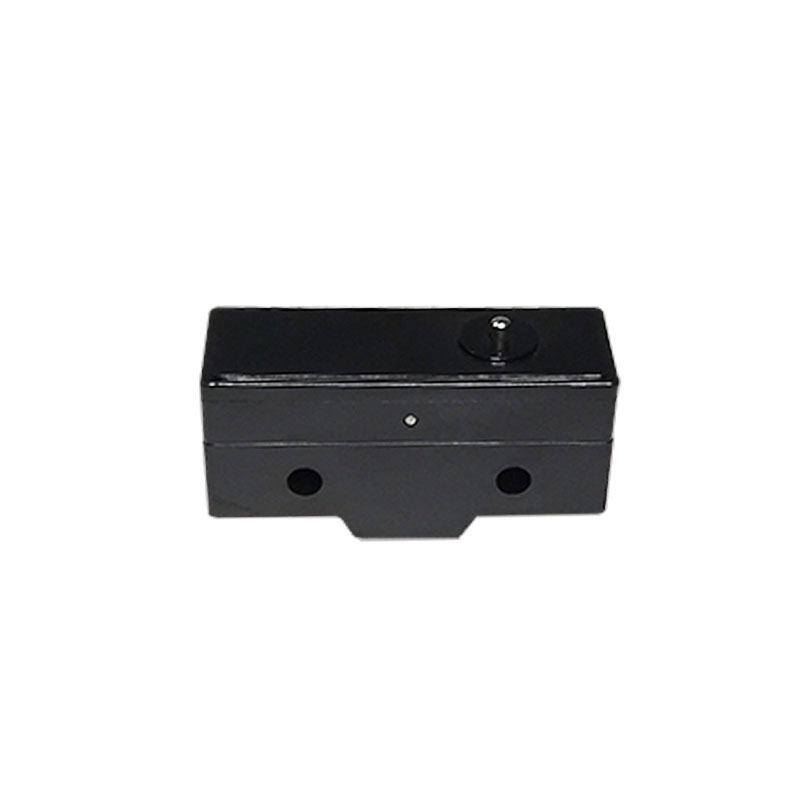

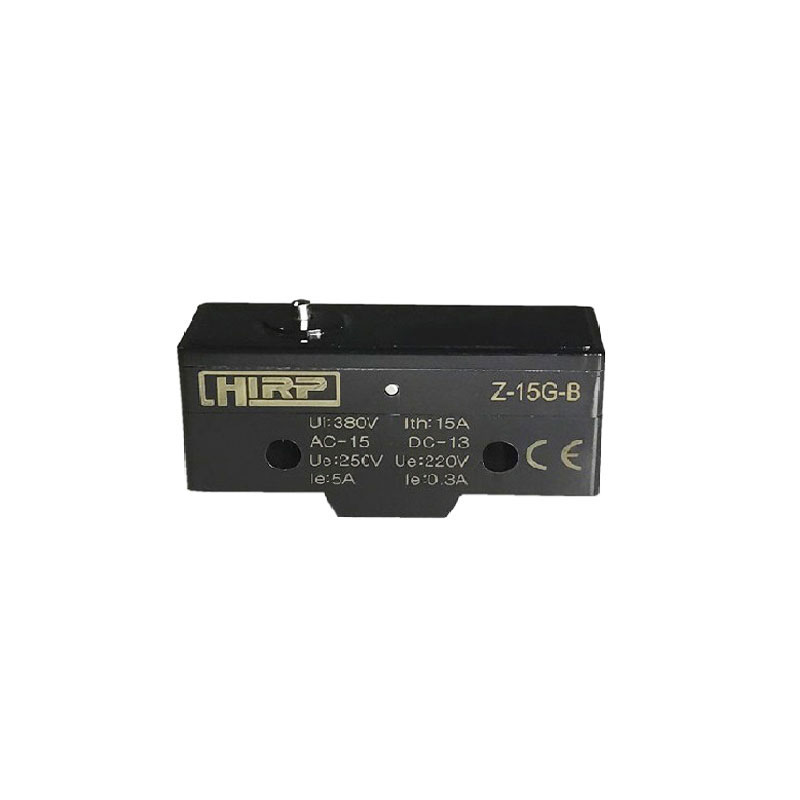

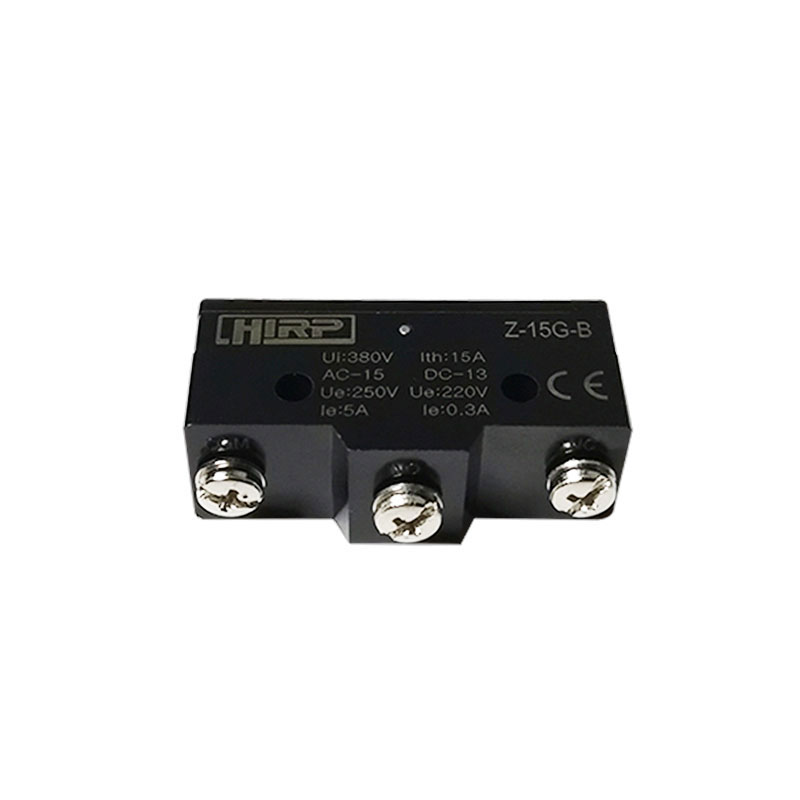

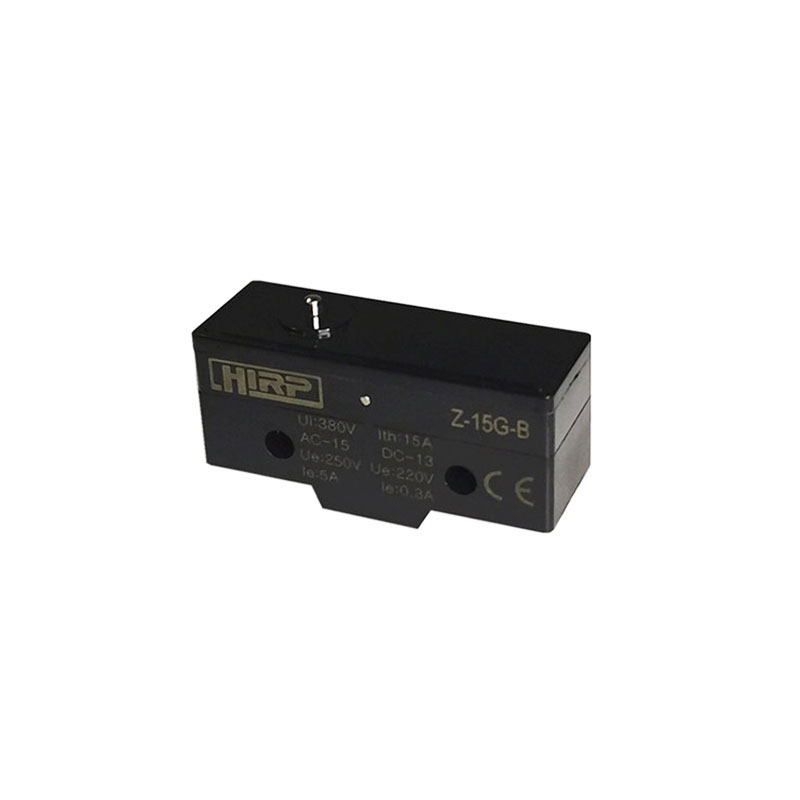

The Features Of micro Limit switch Z-15G-B type.

Geneal purpose micro switches are used in AC control circuits of 50 or 60Hz, with a voltage up to 380V and rated control capacity of 100VA or in DC control cirucits with a voltage up to 220V and a rated control capacity of 10W.
Tight configuration, small contact gap, snap action & High sensitivity and small operating travel & Long life, high reliability

Characteristics & Specificatio :

1. Operation Speed: 0.01mm-1m/s
2. Operation Frequency:
   Mechanical: 240 operations/minute;
   Electrical: 20 operations/minute
3. Contact Resistance: 15Ω max.(initial value)
4. Insulation Resistance: 100Ω min.(at 500VDC)
5. Dieletric Strength:
   1000VAC, 50/60Hz for 1 minute between terminals of the same  polarity;
   1,500VAC, 50/60Hz for 1minute between current-carrying and non-current-carrying metal parts;
   1,500VAC, 50/60Hz for 1minute between each terminal and groun
6. Vibration: 10-55Hz, 1.5mm double amplitude
7. Shock:
   Mechanical Durability:1,000m/Sec²(about 100G'S);
   Malfunction: 300m/Sec²(about 30G'S).
8. Ambient Temperature:
   General purpose type: -25°C to +80°C;
   Sealed type: -15°C to +80°C.
9. Humidity:
   General purpose type: 85% RH max.
   Sealed type: 95% RH max.
10. Mechanical Life：1,000,000 operations min
11. Electrical life：100,000 operations min
12. Color：Black
13. Contact Type：SPDT

14. Weight: About 22 to 58g

Ratings:

Operating Characteristics

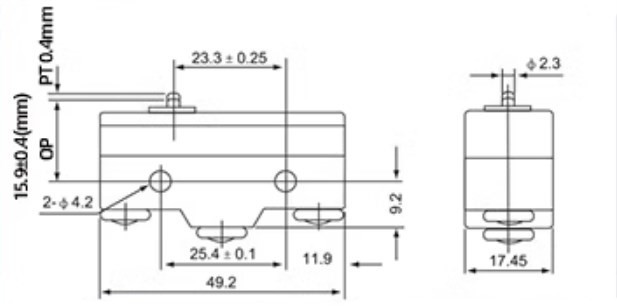

Product Drawings
