Spring Limit Micro Switch Lever Price
- Model Number
- Z-15GW-B
- Electricity Type
- AC
- Max voltage
- 250V
- Max Current
- 15A
- IP Grade
- IP40
- Warranty
- 1 year
- Frequency
- 50/60HZ
- Certificate
- CE,CCC
- Place of Origin
- Zhejiang, China

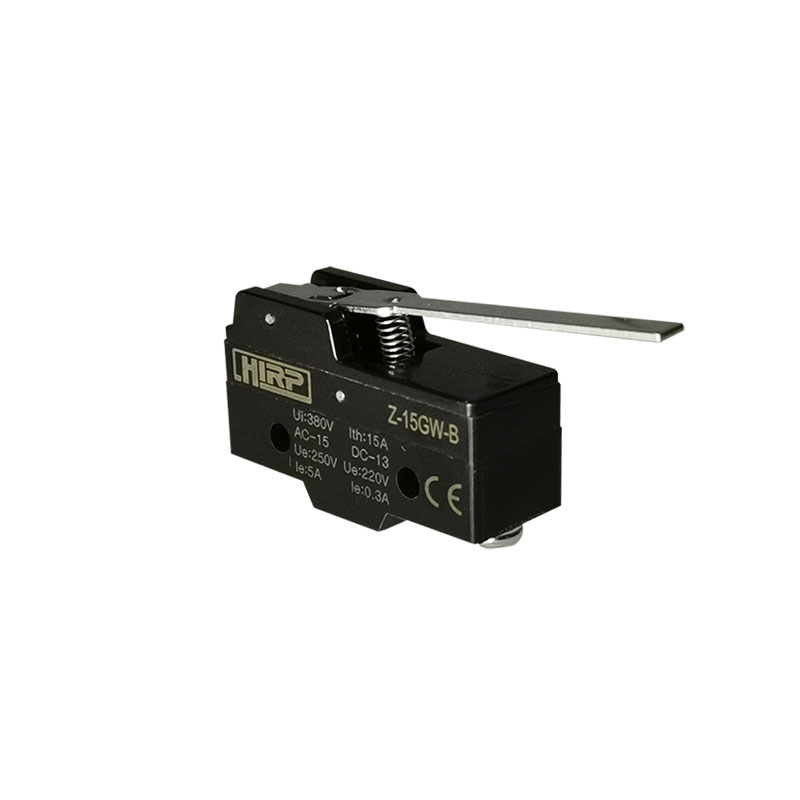

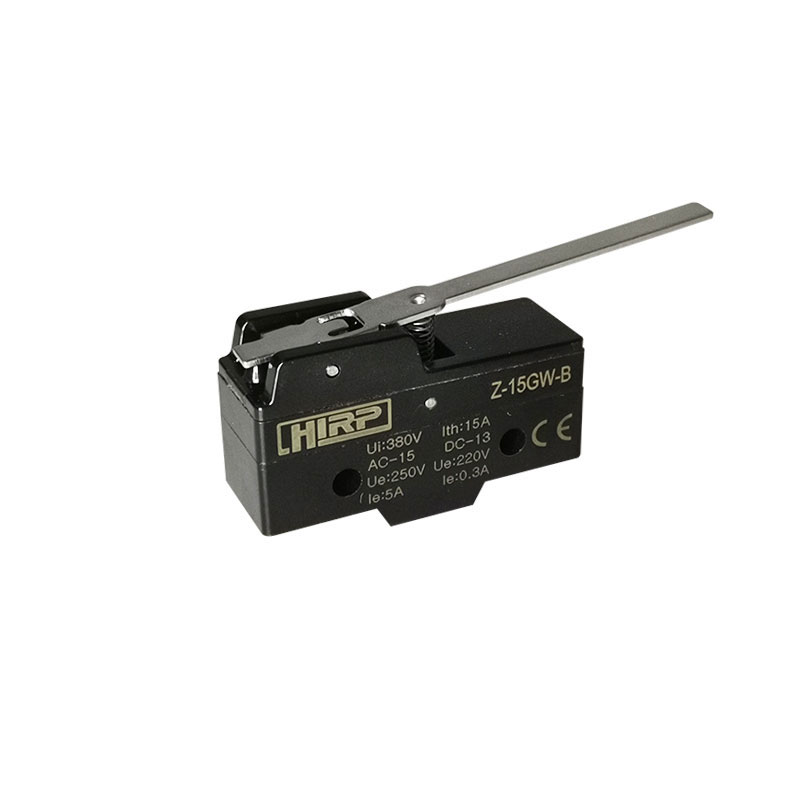

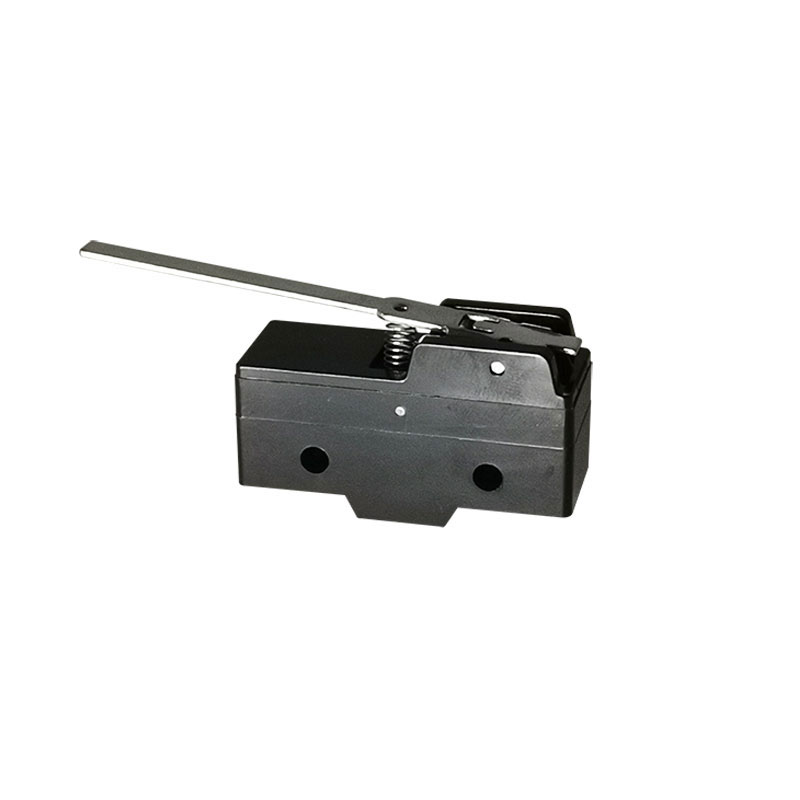

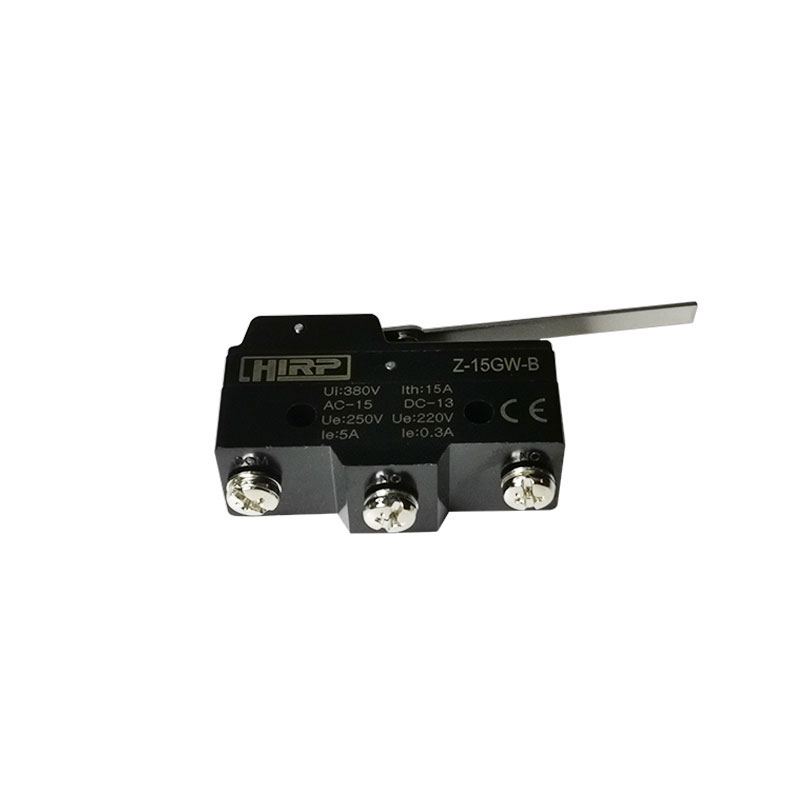

Welcome to Yueqing Renping Electric Co., Ltd! Introducing our latest and high-quality micro switch Z-15GW-B type.Tight configuration, small contact gap, snap action.High sensitivity and small operating travel.Long life, high reliability.
Micro switch features small contact gap and snap-action mechanism, it actuates by specified travel and operation force, there has shell cover it, the outside has a actuate arm, it also called as limit switch. Z-15G series of geneal purpose micro switches are used in AC control circuits of 50 or 60Hz, with a voltage up to 380V and rated control capacity of 100VA or in DC control cirucits with a voltage up to 220V and a rated control capacity of 10W.
Quick Details:
- Mechanical Life：1,000,000 operations min
- Electrical life：100,000 operations min
- Ambient Temperature：-25°C to +80°C
- Color：Black
- Contact Type：SPDT
- Weight：0.036kg/pcs
Characteristics:
- Operation Speed: 0.01mm-1m/s
- Operation Frequency:
Mechanical: 240 operations/minute;
Electrical: 20 operations/minute - Contact Resistance: 15Ω max.(initial value)
- Insulation Resistance: 100Ω min.(at 500VDC)
- Dieletric Strength:
1000VAC, 50/60Hz for 1 minute between terminals of the same polarity;
1,500VAC, 50/60Hz for 1minute between current-carrying and non-current-carrying metal parts;
1,500VAC, 50/60Hz for 1minute between each terminal and groun - Vibration: 10-55Hz, 1.5mm double amplitude
- Shock:
Mechanical Durability:1,000m/Sec2(about 100G'S);
Malfunction: 300m/Sec2(about 30G'S). - Ambient Temperature:
General purpose type: -25°C to +80°C;
Sealed type: -15°C to +80°C. - Humidity:
General purpose type: 85% RH max.
Sealed type: 95% RH max. -
Weight: About 22 to 58g
Ratings:
Operating Characteristics:
| Operating Characteristics | Model | Z-15GW-B |
| Operation Force | OF(Max) | 0.69N |
| Restoring Force | RF(Min) | 0.14N |
| Pre Travel | PT(Max) | 5.6mm |
| Over Travel | OT(Min) | 1.27mm |
| Movement Differential | MD(Max) | 28.2mm |
| Operating Position | OP | 19±0.8(mm) |

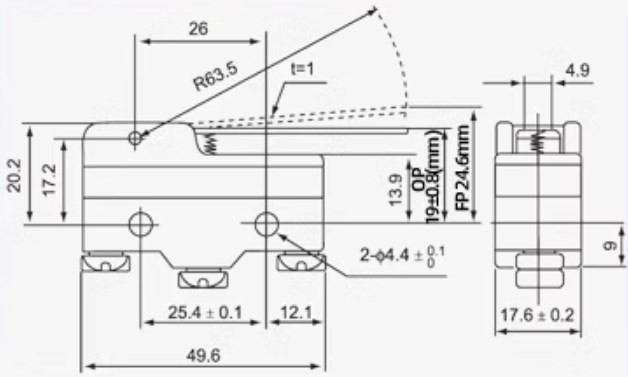

Product Drawings:
