Rotary Micro Switch Limit Switch

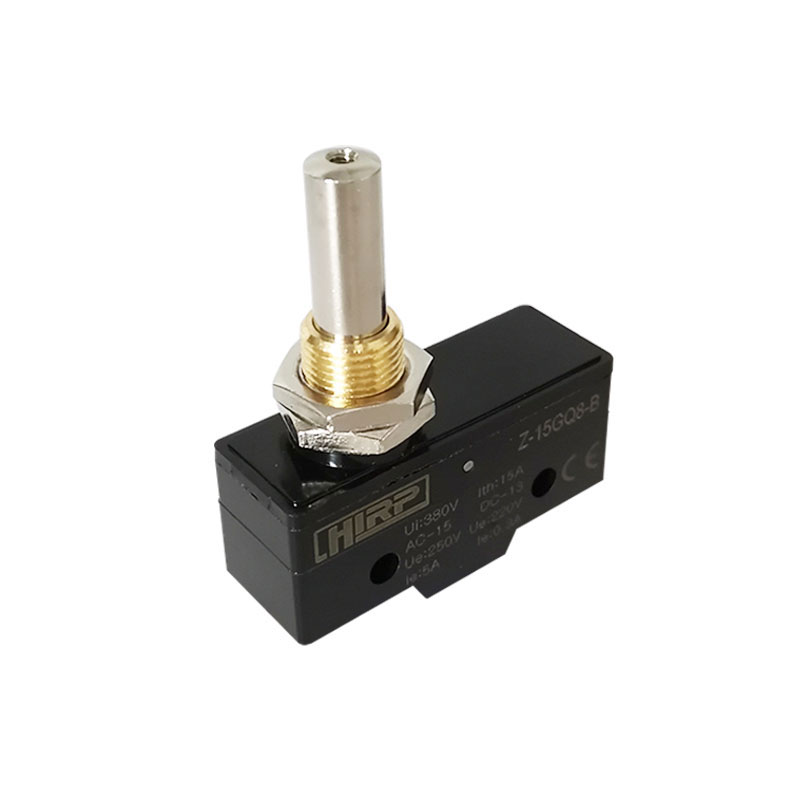

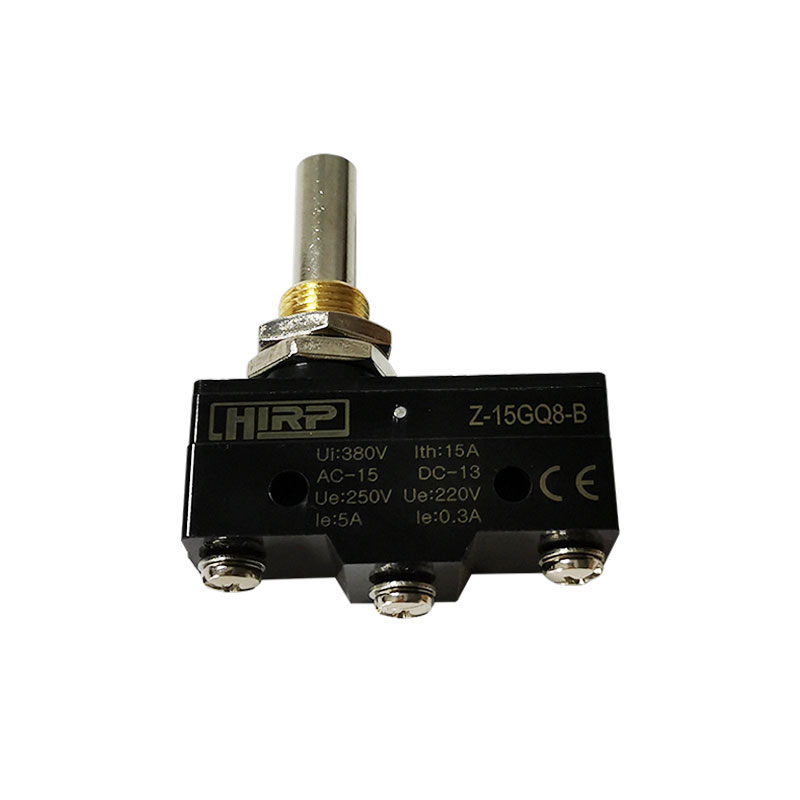

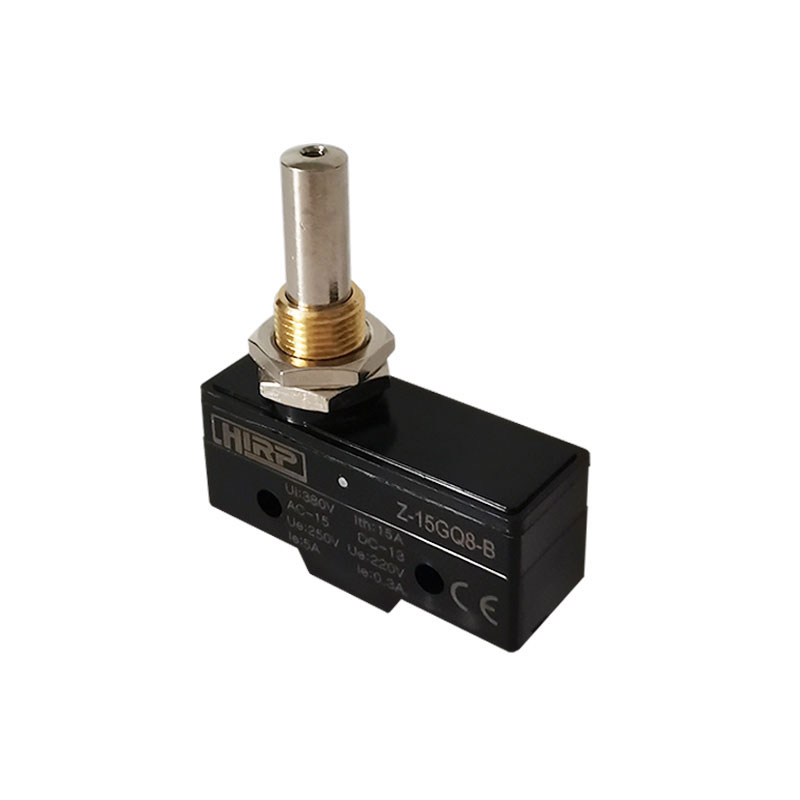

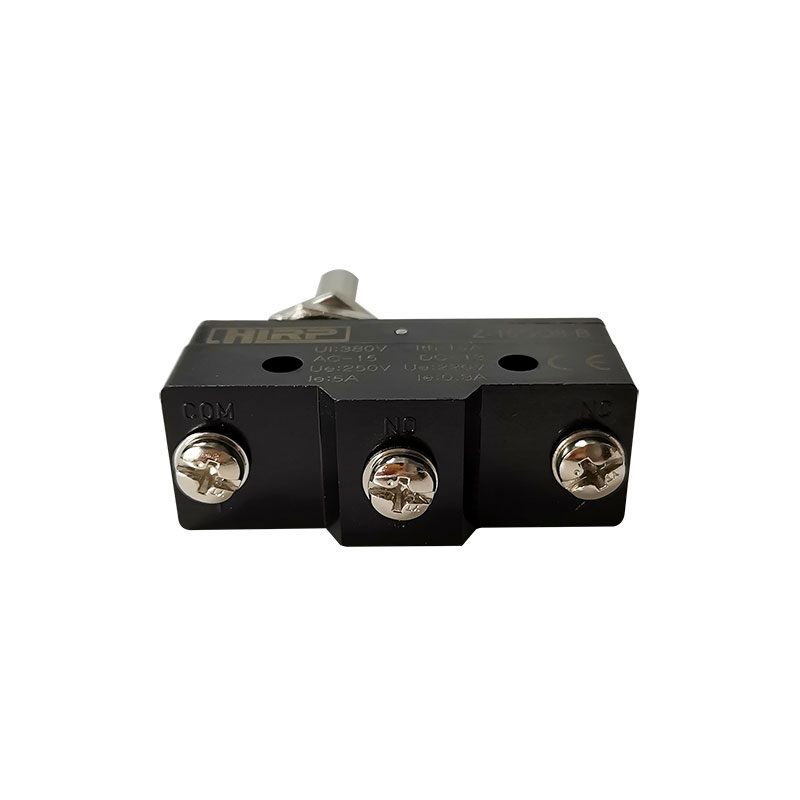

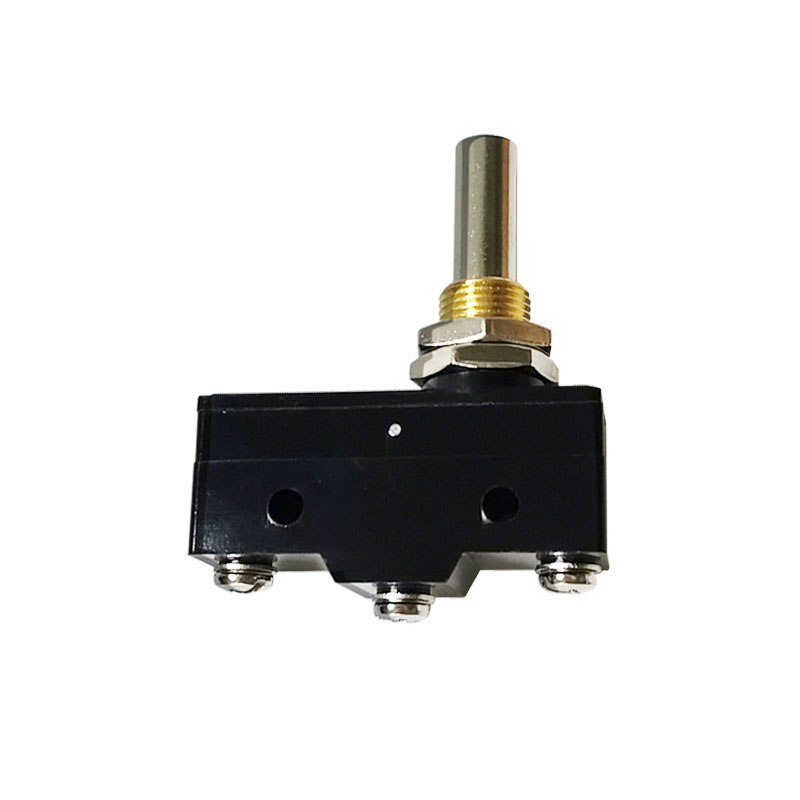

Z-15GQ8-B has high sensitivity and reliability, and is equipped which can adapt to various complex working environments. And this micro switch adopting high-quality materials and advanced manufacturing processes, it has a high service life and stability with good stability, can operate stably for a long time, and is not prone to malfunctions. Widely used in various fields.

Z-15G series Features:

• A large switching capacity of 15A with high repeal accurancy.
• A wide range of varlation in contact form for your selection:basic,split-contact,maintained-contact,and adjustable contact gap types.
• A series of standard models for micro loads is available.
• A series of molded terminal-type models incorporating safety terminal protective cover is available.

Characteristics:

1. Operation Speed: 0.01mm-1m/s
2. Operation Frequency:
   Mechanical: 240 operations/minute;
   Electrical: 20 operations/minute
3. Contact Resistance: 15Ω max.(initial value)
4. Insulation Resistance: 100Ω min.(at 500VDC)
5. Dieletric Strength:
   1000VAC, 50/60Hz for 1 minute between terminals of the same  polarity;
   1,500VAC, 50/60Hz for 1minute between current-carrying and non-current-carrying metal parts;
   1,500VAC, 50/60Hz for 1minute between each terminal and groun
6. Vibration: 10-55Hz, 1.5mm double amplitude
7. Shock:
   Mechanical Durability:1,000m/Sec²(about 100G'S);
   Malfunction: 300m/Sec²(about 30G'S).
8. Ambient Temperature:
   General purpose type: -25°C to +80°C;
   Sealed type: -15°C to +80°C.
9. Humidity:
   General purpose type: 85% RH max.
   Sealed type: 95% RH max.

10. Weight: About 22 to 58g

Ratings:

Characteristics:

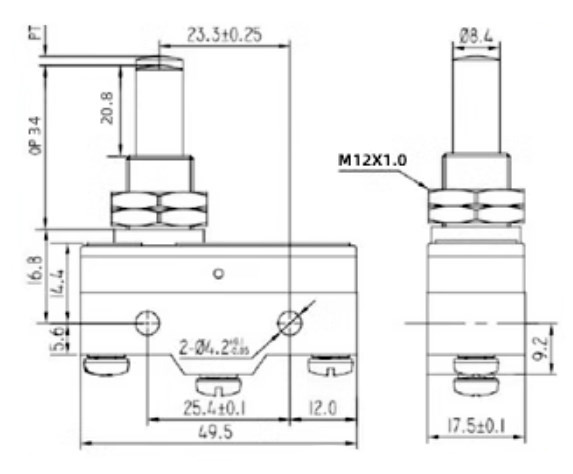

Products Drawings:
