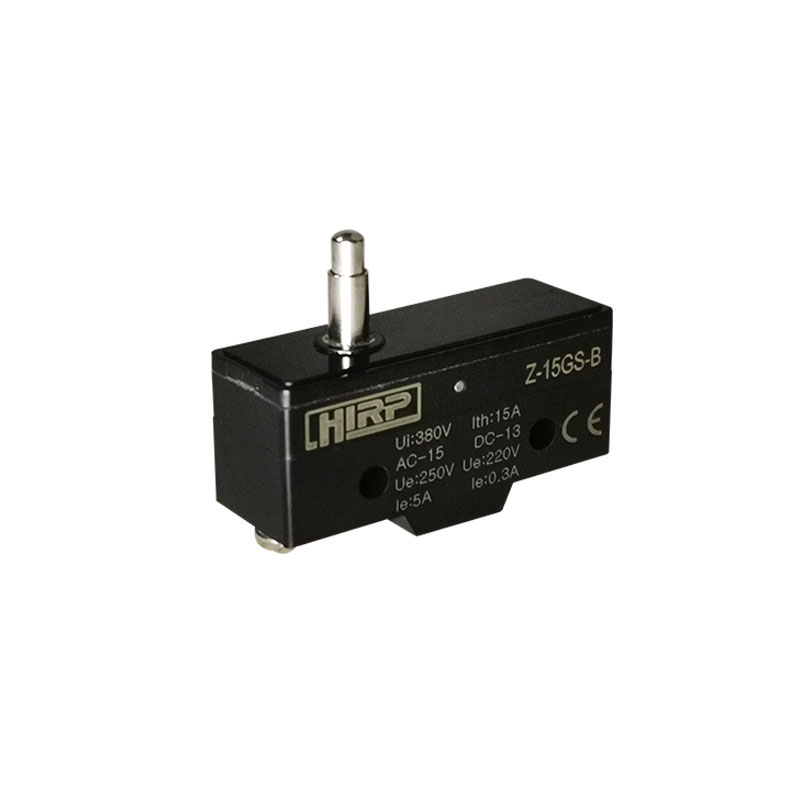

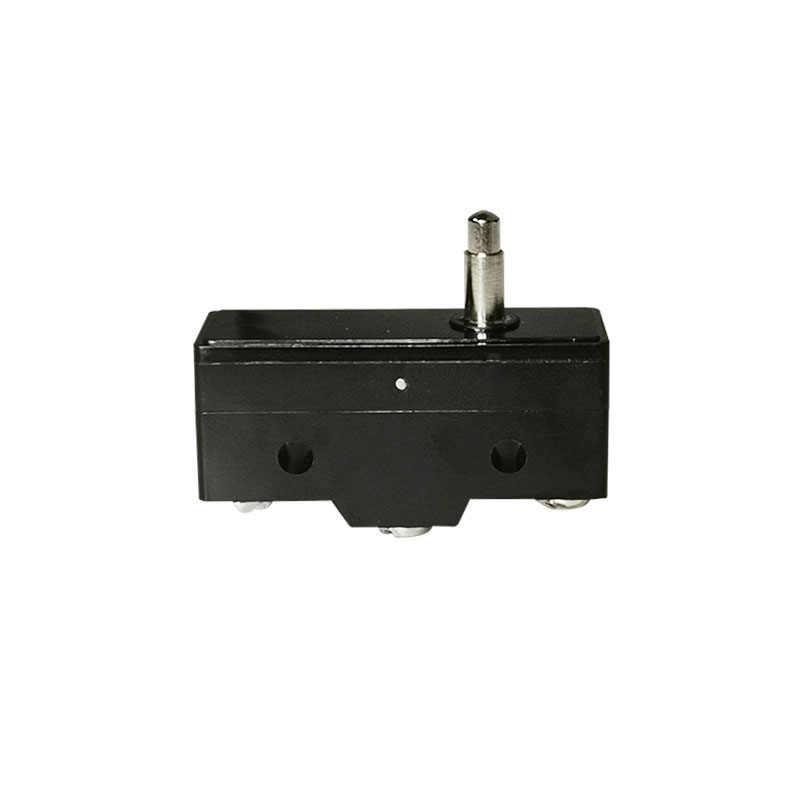

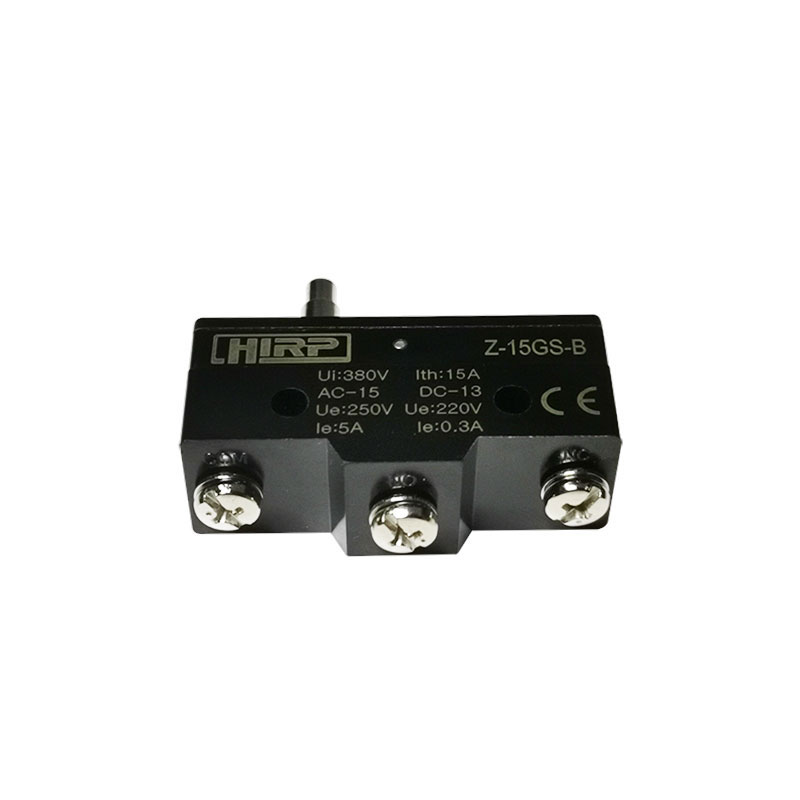

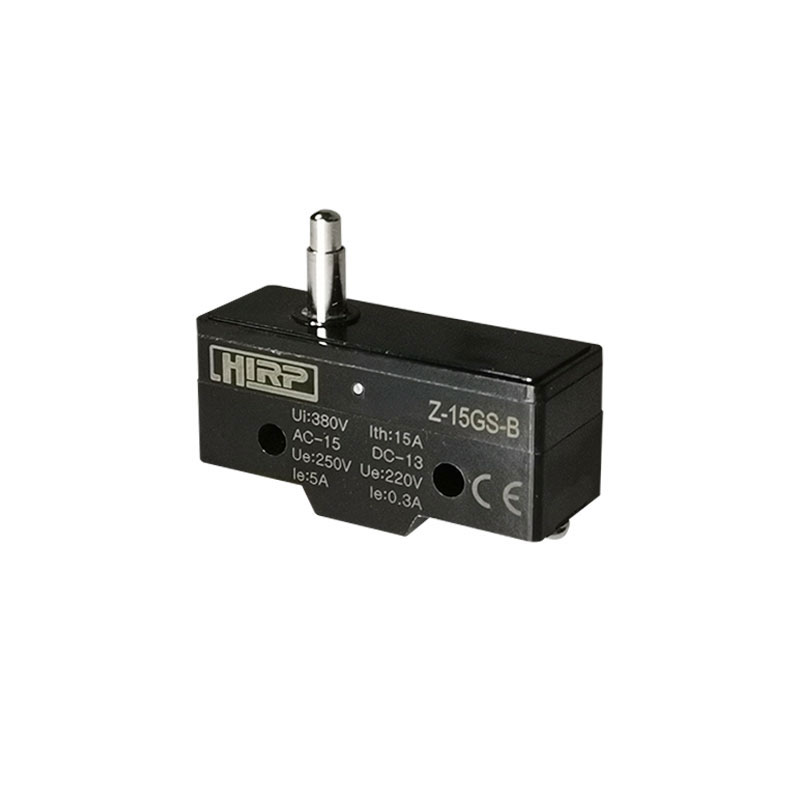

High Temperature Safety Micro Limit Switch
- Model Number
- Z-15GS-B
- Electricity Type
- AC
- Max voltage
- 250V
- Max Current
- 15A
- IP Grade
- IP40
- Warranty
- 1 year
- Contact type
- SPDT
- Frequency
- 50/60Hz
- Mechanical Life
- 1,000,000 operations min
- Electrical Life
- 100,000 operations min
- Certificate
- CE,CCC
- Place of Origin
- Zhejiang, China
Panel mount micro switch Z-15GS-B is a versatile and reliable component that offers accurate and repeatable switching performance in various applications. It has a wide range of applications in various industries.
Panel mount micro switch Z-15GS-B is a versatile and reliable component that offers accurate and repeatable switching performance in various applications. It has a wide range of applications in various industries and has the following characteristics：
- Accurate and repeatable switching performance, which ensures the proper functioning of the equipment.
- Compact size enables it to fit in tight spaces, which saves on space and improves design flexibility.
- A wide range of operating temperatures, which makes it suitable for various environments.
- Snap-action mechanism reduces the contact bounce, which enhances the electrical performance and reduces wear and tear.
- Has a high contact rating of 10A at 250VAC,so can handle high current and voltage loads.
Z-15G series Features:
- A large switching capacity of 15A with high repeal accurancy.
- A wide range of varlation in contact form for your selection:basic,split-contact,maintained-contact,and adjustable contact gap types.
- A series of standard models for micro loads is available.
- A series of molded terminal-type models incorporating safety terminal protective cover is available.
Ratings:
Characteristics:
| Operation Speed | 0.01mm-1m/s |
| Operation Frequency | Mechanical: 240 operations/minute; Electrical: 20 operations/minute |
| Contact Resistance | 15Ω max.(initial value) |
| Insulation Resistance | 100Ω min.(at 500VDC) |
| Dielectric Strength | 1000VAC, 50/60Hz for 1 minute between terminals of the same polarity |
| 1500VAC, 50/60Hz for 1 minute between current-carrying and non-current-carrying metal parts | |
| 1500VAC, 50/60Hz for 1 minute between each terminal and ground | |
| Vibration | 10-55Hz, 1.5mm double amplitude |
| Shock | Mechanical Durable: 1,000m/Sec2(about 100G'S); Malfunction: 300m/Sec2(about 30G'S) |
| Ambient Temperature | General purpose type: -25°C to +80°C; Sealed type: -15°C to +80°C. |
| Humidity | General purpose type: 85% RH max. Sealed type: 95% RH max. |
| Weight | About 22 to 58g |

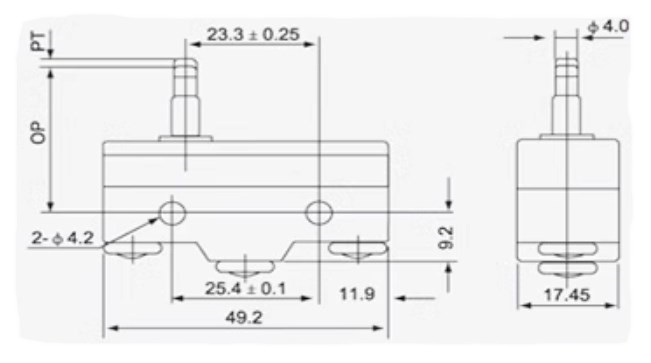

Products Drawings:
