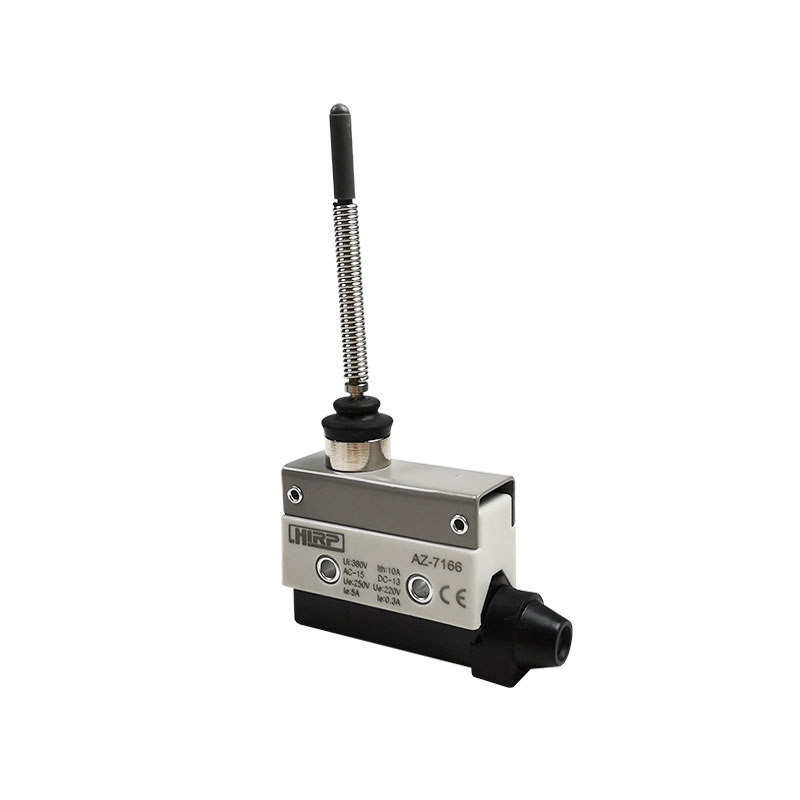

Electronic AC Micro Limit Switch For Lift
- Model Number
- AZ-7166
- Electricity Type
- AC
- Max voltage
- 250V
- Max Current
- 10A
- IP Grade
- IP40
- Warranty
- 1 year
- Contact type
- SPDT
- Frequency
- 50/60HZ
- Weight
- 0.09kg
- Mechanical Life
- 1,000,000 times above
- Electrical Life
- 100,000 times above
- Certificate
- CE,CCC
- Place of Origin
- Zhejiang, China
The Elevator Limit Switch model AZ-7166 is a highly efficient and durable device that has a lot to offer. Designed to provide accurate and reliable performance, this Elevator Limit Switch is ideal for use in a wide range of industrial and commercial applications.
The Elevator Limit Switch model AZ-7166 is a highly efficient and durable device that has a lot to offer. Designed to provide accurate and reliable performance, this Elevator Limit Switch is ideal for use in a wide range of industrial and commercial applications.
Feather of AZ-7166
- Extremely versatile device: It can be used in a variety of different settings. With its rugged construction, the switch is able to withstand the harshest industrial environments, making it ideal for use in applications that require a high level of durability and reliability.
- Long actuator arm: This provides a greater degree of flexibility when it comes to installations, allowing for greater customization and fine-tuning of the switch's performance. With a longer actuator arm, the switch is able to detect more precise movements and changes in conditions, providing a higher level of accuracy and reliability.
- Low activation force: This means that the switch can be triggered with minimal effort, making it ideal for use in applications where quick and efficient operation is critical.
Characteristics:
| Operation Speed | 0.01mm-50cm/sec |
| Operation Frequency | Mechanical: 120 operations/minute; Electrical: 30 operations/minute |
| Contact Resistance | 15m Ω max.(initial value) |
| Insulation Resistance | 100m Ω max.(at 500VDC) |
| Dielectric Strength | 1000VAC, 50/60Hz for 1 minute between terminals of the same polarity |
| 1500VAC, 50/60Hz for 1 minute between current-carrying and non-current-carrying metal parts | |
| 1500VAC, 50/60Hz for 1 minute between each terminal and ground | |
| Vibration | Action:10-55HZ, 1.5mm pairs swing |
| Shock | Mechanical Durable: 1,000m/Sec2(about 100G'S); Malfunction: 300m/Sec2(about 30G'S) |
| Ambient Temperature | -10~+80℃ |
| Humidity | <95% RH |
| Weight | About 60g |
Operating Characteristics:
| Operating Characteristics | Model | AZ-7166 |
| Operation Force | OF(Max) | 1.176N |
| Pre Travel | PT(Max) | 250mm |
| Over Travel | OT(Min) | 11mm |

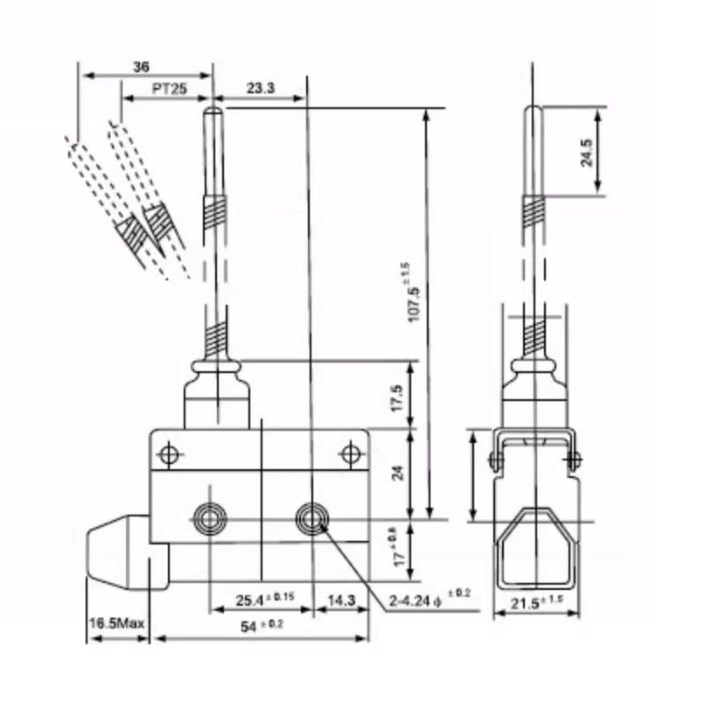

Products Drawings:

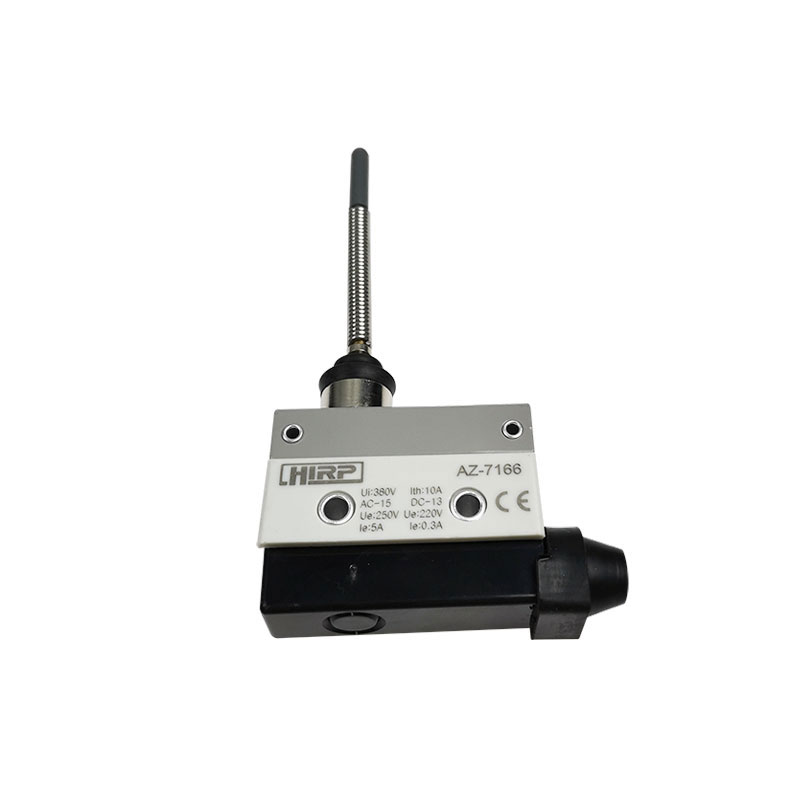

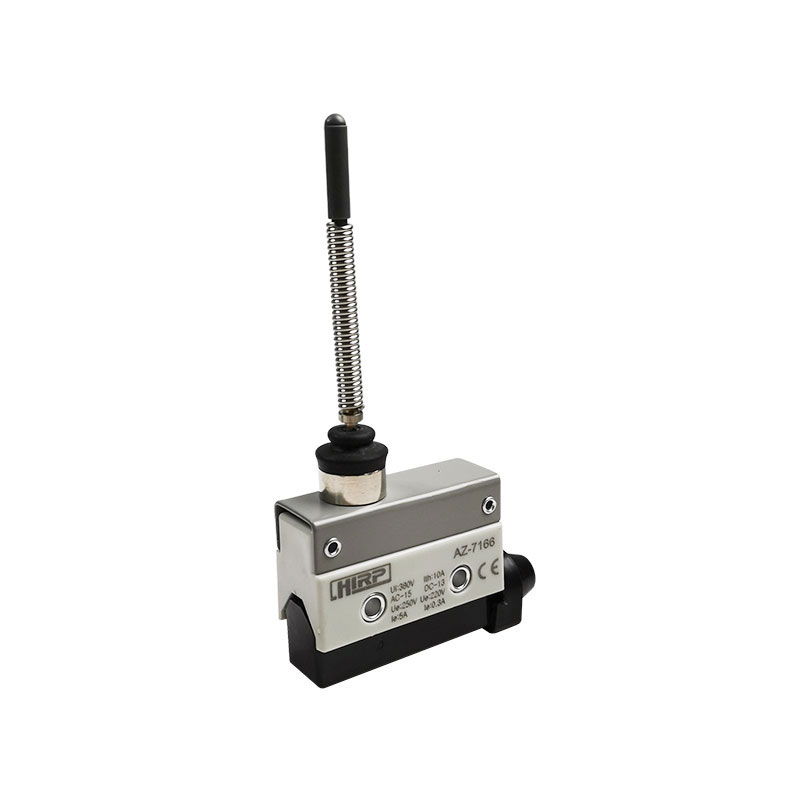

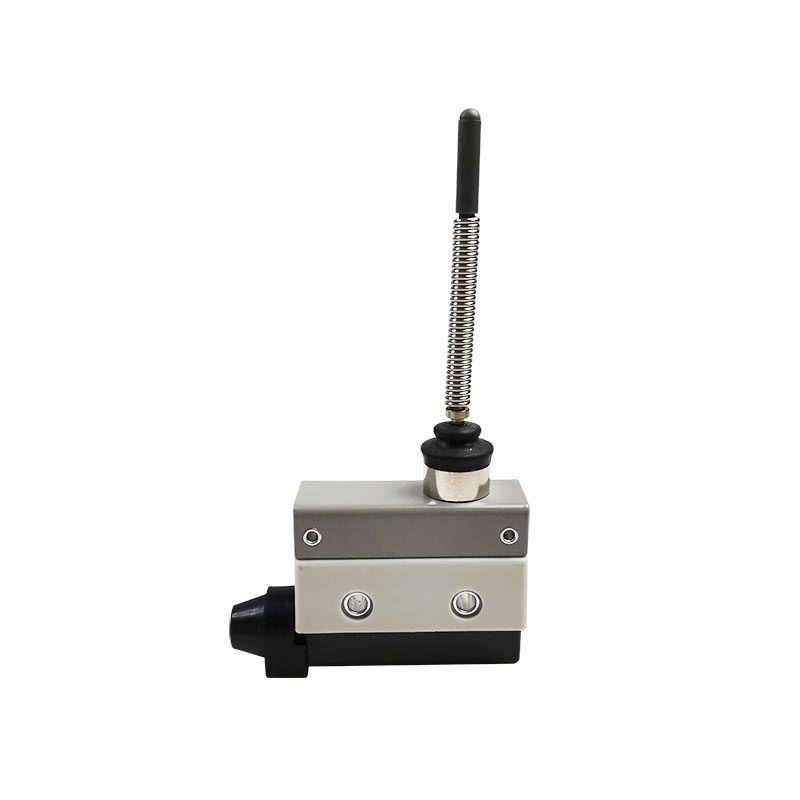

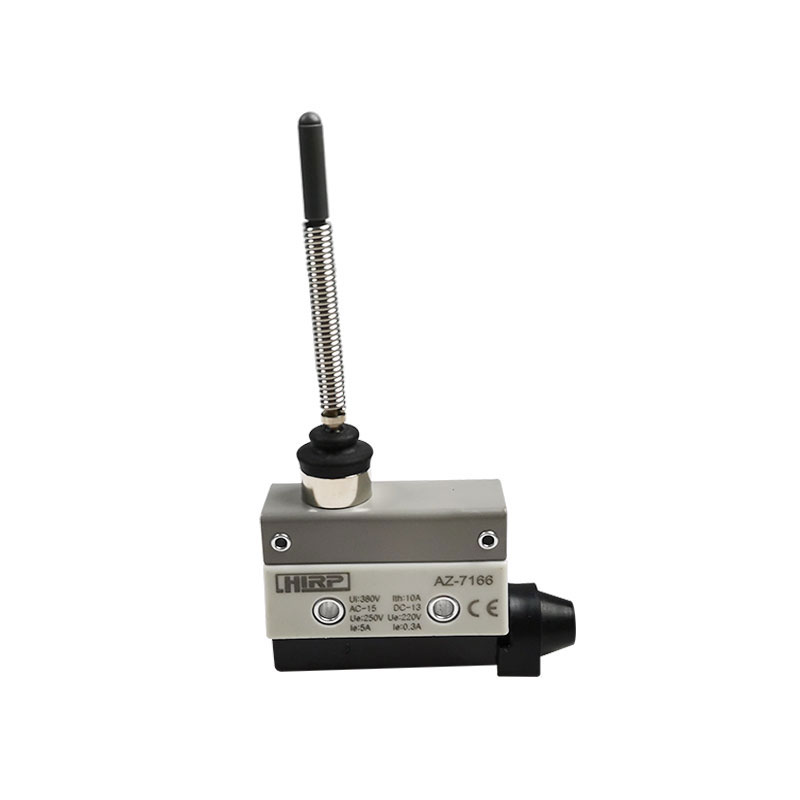

AZ series Products Picture
