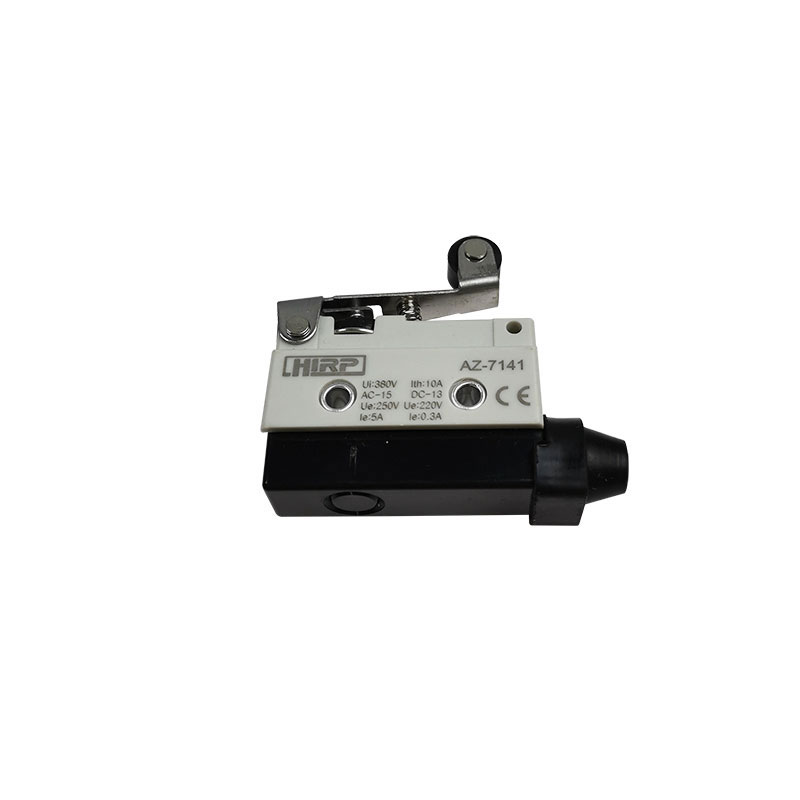

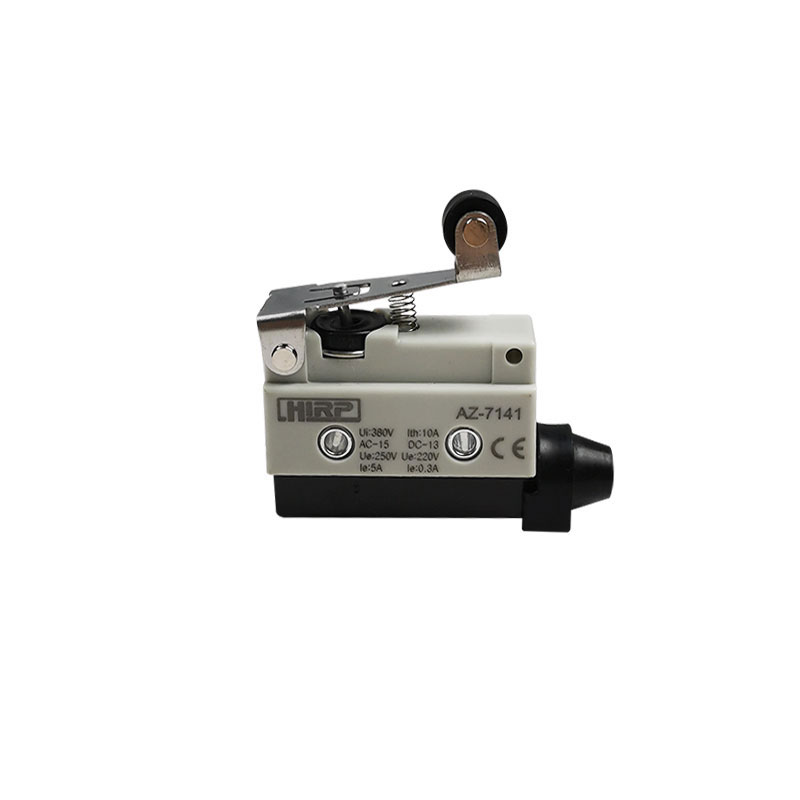

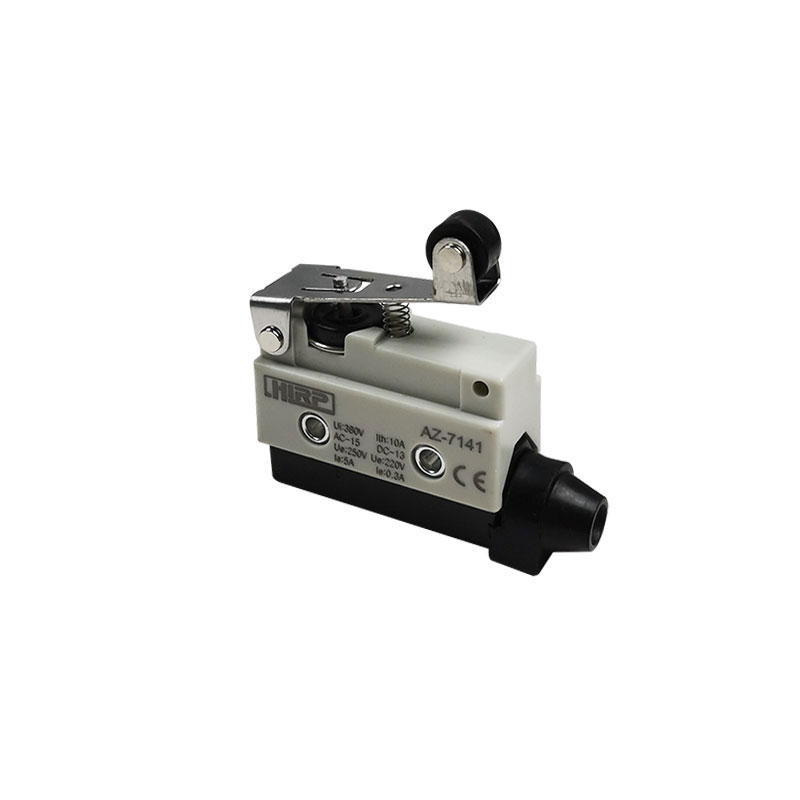

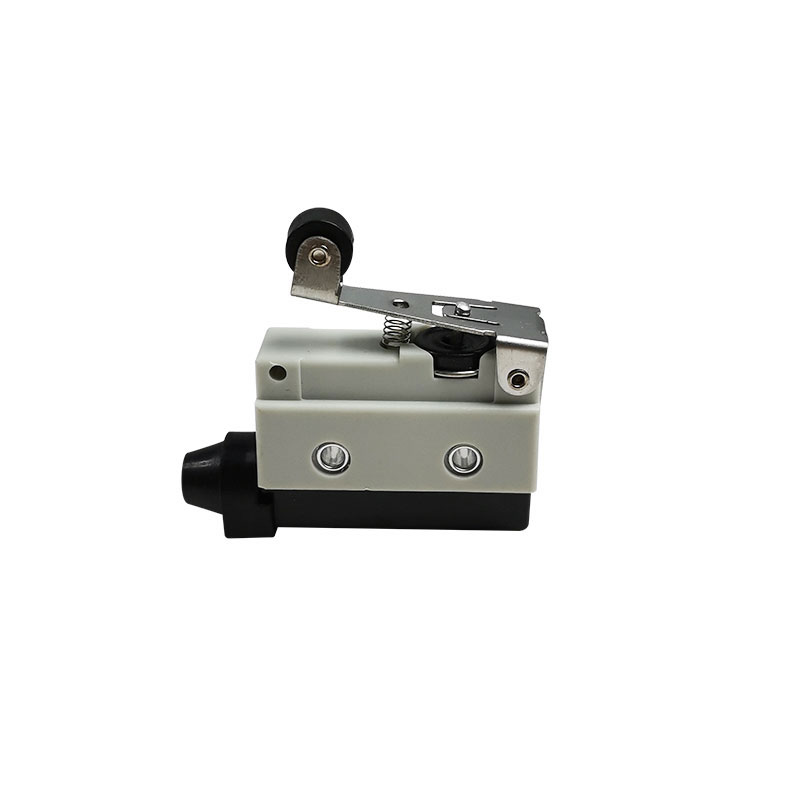

AZ-7141 Micro switch long lever sheave Model is designed with a compact and robust structure that ensures a low operating force and a high degree of accuracy in actuation. This means that the switch will activate with minimal pressure, making it ideal for use in applications where precision and sensitivity are critical.

This type of limit switch with silver/chromium oxide alloy contact: the point surface groove design plays an arc extinguishing role, and the shell is made of ABS material. The thickened shell provides efficient protection and insulation for the product. Built-in basic switch and a high-precision enclosed switch, which has high repeatability and durability of at least 10 million operations.

High reliability and durability
Flexible and multifunctional
High precision triggering device
Multiple connection methods
Customer service and technical support

Characteristics:

Operation Speed: 0.01mm-50cm/sec
Operation Frequency:
Mechanical: 120 operations/minute;
Electrical: 30 operations/minute
Contact Resistance: 15m Ω max.(initial value)
Insulation Resistance: 100m Ω min.(at 500VDC)
Dieletric Strength:
1000VAC, 50/60Hz for 1 minute between terminals of the same polarity;
1,500VAC, 50/60Hz for 1minute between current-carrying and non-current-carrying metal parts;
1,500VAC, 50/60Hz for 1minute between each terminal and groun
Vibration: Action:10-55HZ, 1.5mm pairs swing
Shock:
Mechanical Durability:1,000m/Sec²(about 100G'S);
Malfunction: 300m/Sec²(about 30G'S).
Ambient Temperature: -10~+80℃
Humidity: <95% RH
Weight: About 60g

Ratings:

Roller Lever Thermal Limit Switch Types

Characteristics:

Operation Speed	0.01mm-50cm/sec
Operation Frequency	Mechanical: 120 operations/minute; Electrical: 30 operations/minute
Contact Resistance	15m Ω max.(initial value)
Insulation Resistance	100m Ω max.(at 500VDC)
Dielectric Strength	1000VAC, 50/60Hz for 1 minute between terminals of the same polarity
	1500VAC, 50/60Hz for 1 minute between current-carrying and non-current-carrying metal parts
	1500VAC, 50/60Hz for 1 minute between each terminal and ground
Vibration	Action:10-55HZ, 1.5mm pairs swing
Shock	Mechanical Durable: 1,000m/Sec²(about 100G'S); Malfunction: 300m/Sec²(about 30G'S)
Ambient Temperature	-10~+80℃
Humidity	<95% RH
Weight	About 60g

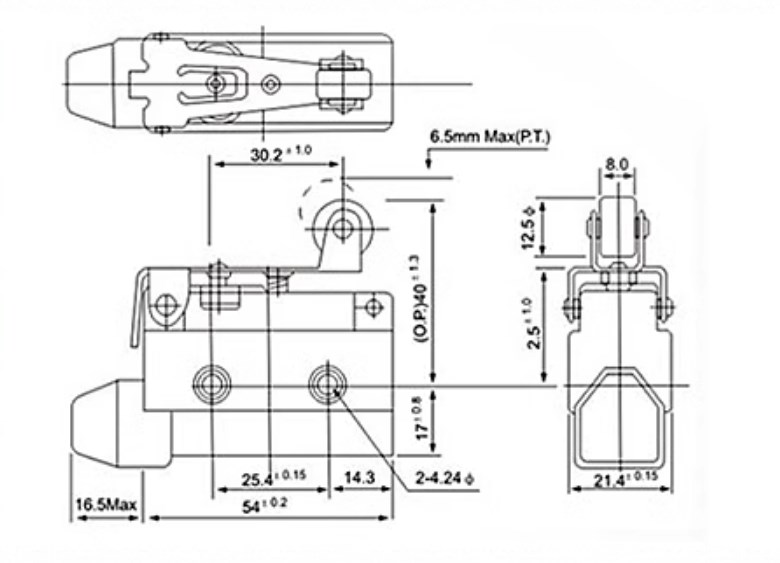

Operating Characteristics:

Operating Characteristics	Model	AZ-7141
Operation Force	OF(Max)	2.352N
Restoring Force	RF(Min)	0.784N
Pre Travel	PT(Max)	6.5mm
Over Travel	OT(Min)	2.0mm
Movement Differential	MD(Max)	1.5mm
Operating Position	OP	40±1(mm)
Free Position	FP	46mm
