High Mini Limit Micro Switch Lever
- Model Number
- AZ-7140
- Electricity Type
- AC
- Max voltage
- 250V
- Max Current
- 10A
- IP Grade
- IP40
- Warranty
- 1 year
- Contact type
- SPDT
- Frequency
- 50/60HZ
- Weight
- 0.06kg
- Mechanical Life
- 1,000,000 times above
- Electrical Life
- 100,000 times above
- Certificate
- CE,CCC
- Place of Origin
- Zhejiang, China
This is a limit switch requires less operating force than conventional limit switches.
AZ series Features:
- Enclosed switches with built-in basic switches for high repeatability and duiability of 10 million operations minimum.
- Panel mount versions have the same operating position as Z basic switch.
- Suitable for applications demanding higher mechanicl strength, dustproof and drip-proof properties than those on basic switches.
- Requires less operating force than conventional limit switches.
- Compact structure, high sensitivity, small operating stroke, and long mechanical life.
Characteristics:
| Operation Speed | 0.01mm-50cm/sec |
| Operation Frequency | Mechanical: 120 operations/minute; Electrical: 30 operations/minute |
| Contact Resistance | 15m Ω max.(initial value) |
| Insulation Resistance | 100m Ω max.(at 500VDC) |
| Dielectric Strength | 1000VAC, 50/60Hz for 1 minute between terminals of the same polarity |
| 1500VAC, 50/60Hz for 1 minute between current-carrying and non-current-carrying metal parts | |
| 1500VAC, 50/60Hz for 1 minute between each terminal and ground | |
| Vibration | Action:10-55HZ, 1.5mm pairs swing |
| Shock | Mechanical Durable: 1,000m/Sec2(about 100G'S); Malfunction: 300m/Sec2(about 30G'S) |
| Ambient Temperature | -10~+80℃ |
| Humidity | <95% RH |
| Weight | About 60g |
Operating Characteristics:
| Operating Characteristics | Model | AZ-7140 |
| Operation Force | OF(Max) | 2.156N |
| Restoring Force | RF(Min) | 0.588N |
| Pre Travel | PT(Max) | 8.5mm |
| Over Travel | OT(Min) | 2.5mm |
| Movement Differential | MD(Max) | 2.0mm |
| Operating Position | OP | 25±1(mm) |
| Free Position | FP | 21mm |

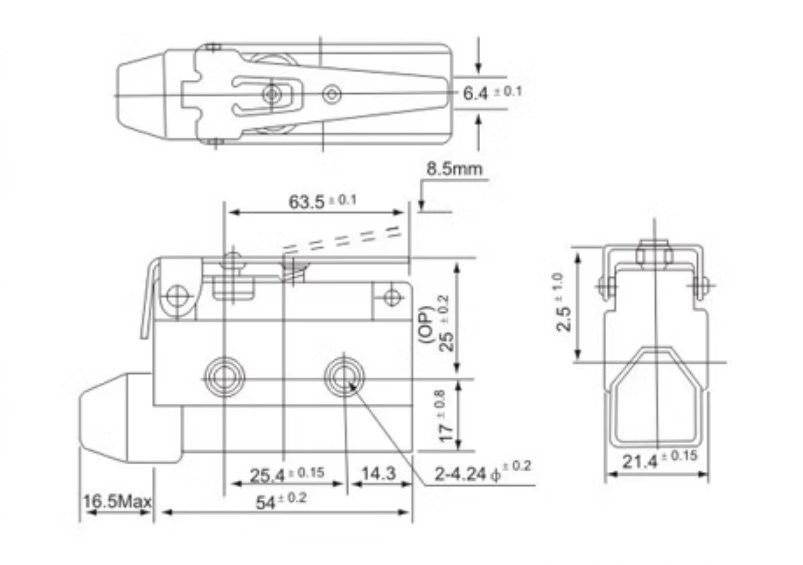

Products Drawings:

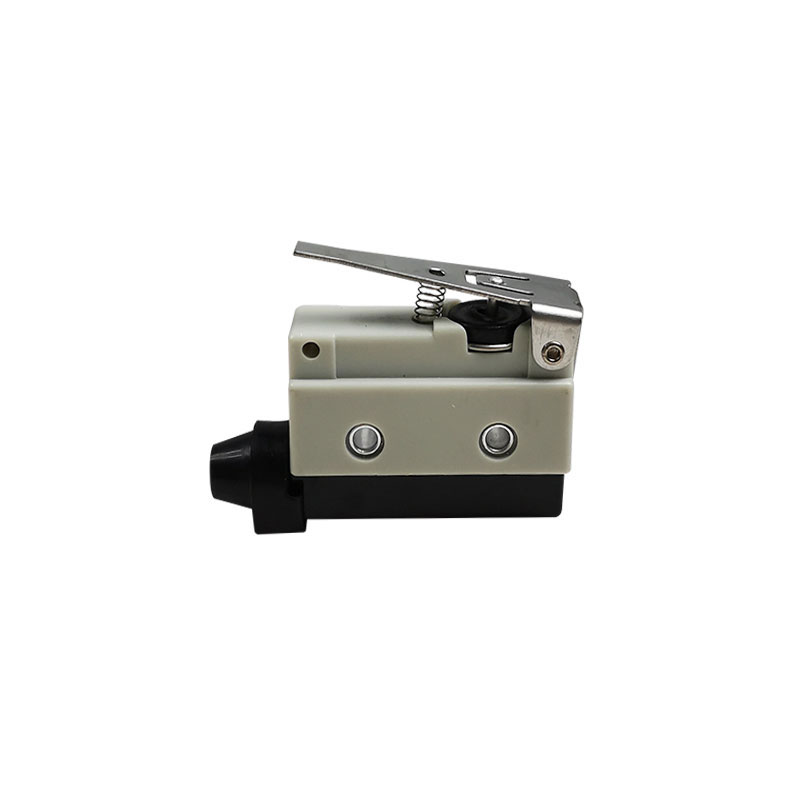

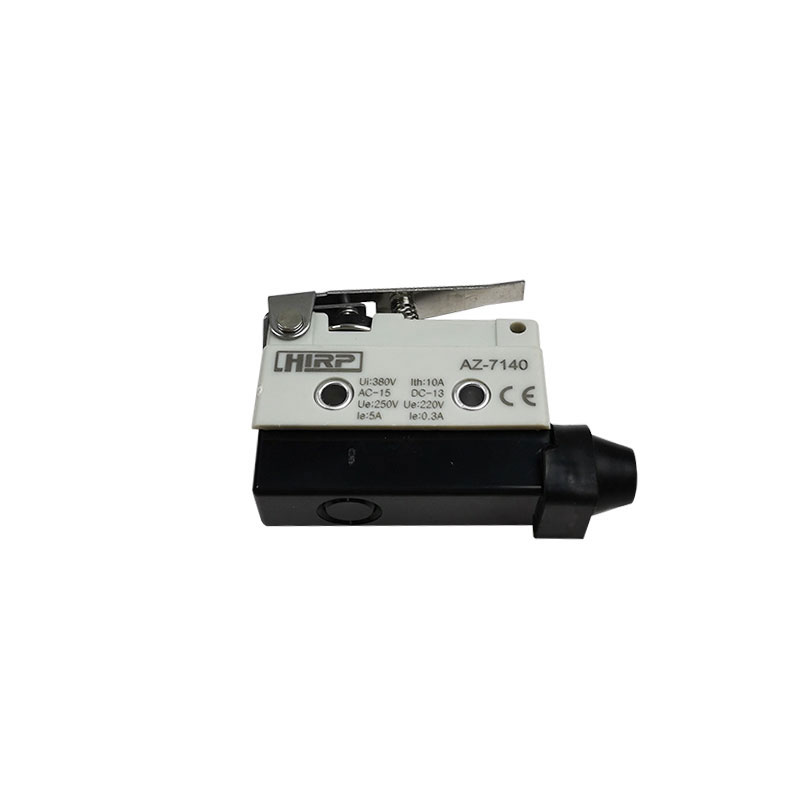

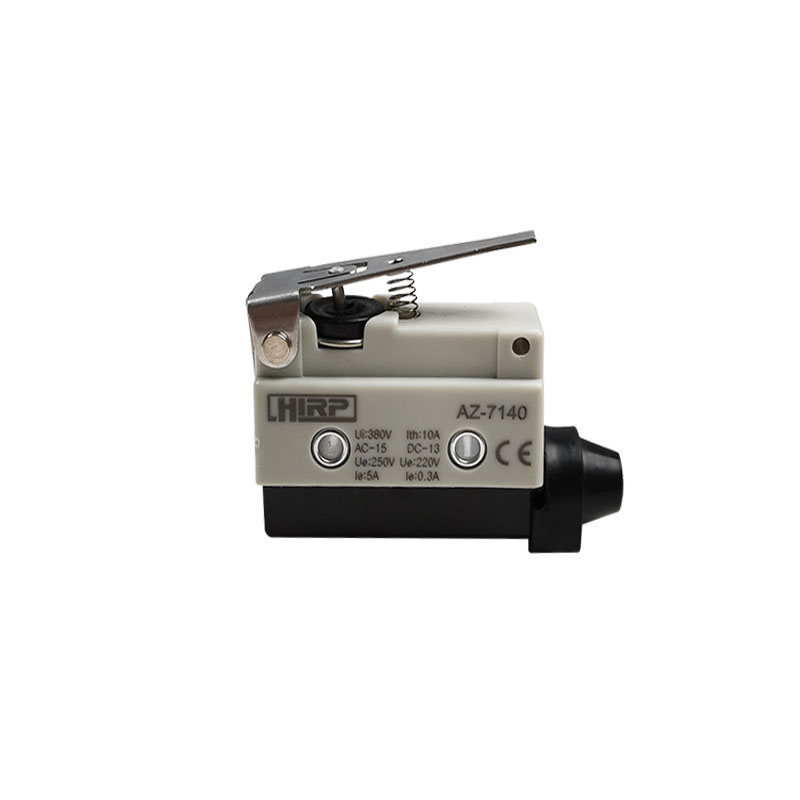

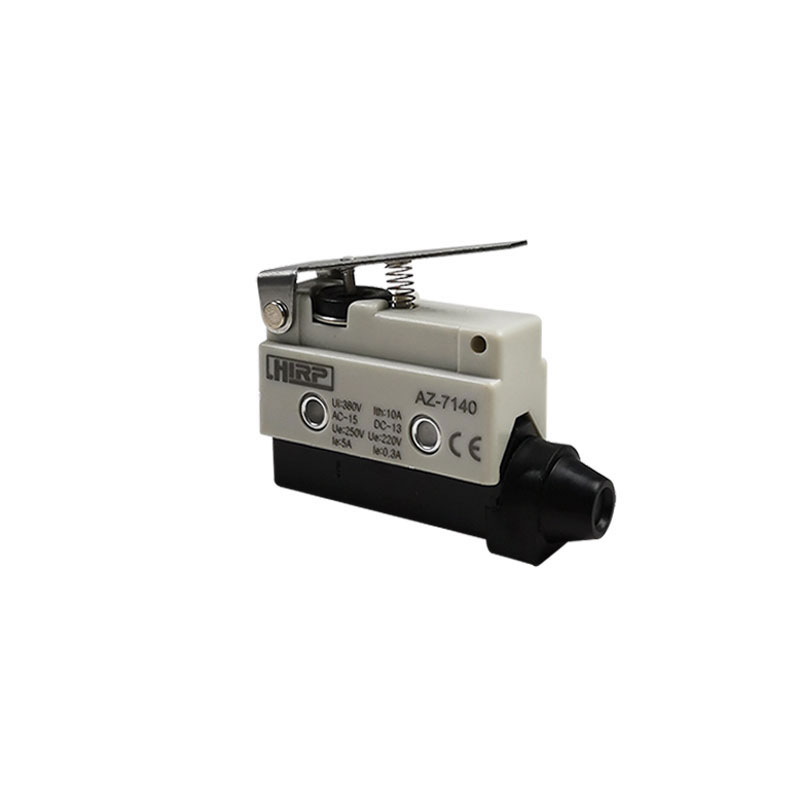

AZ series Products Picture
