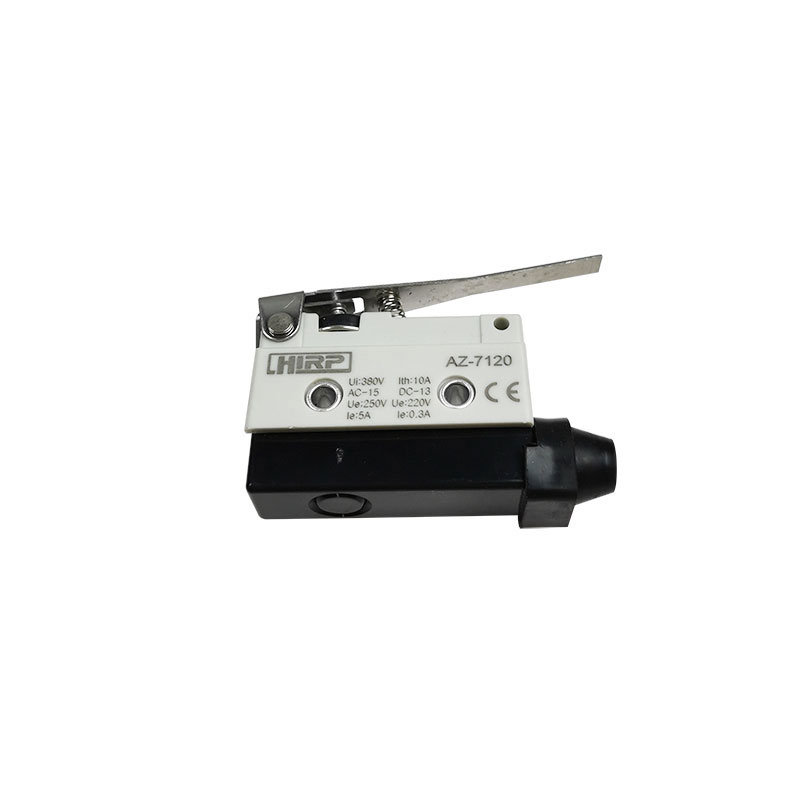

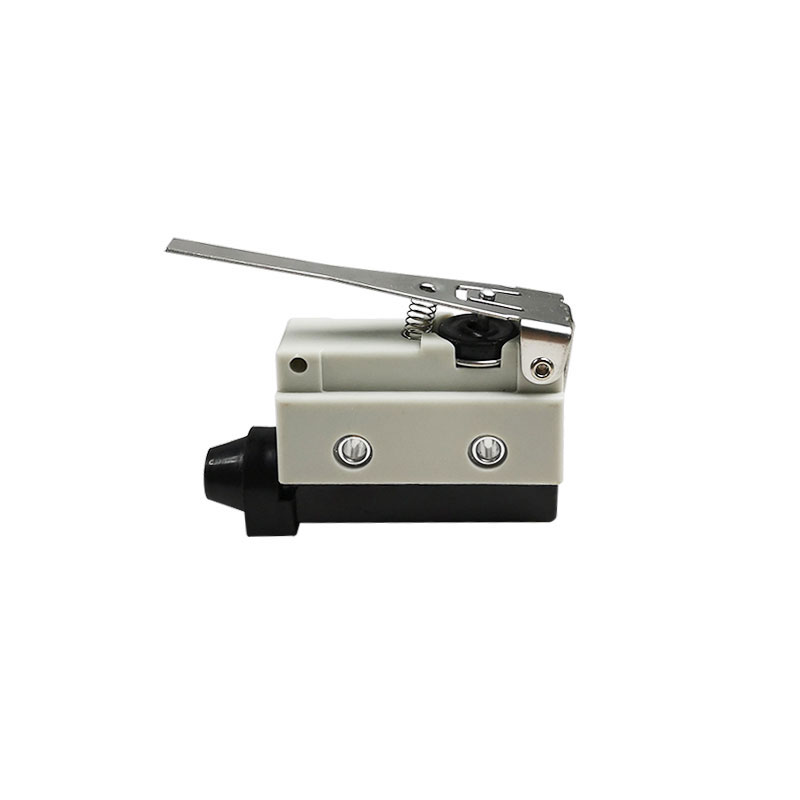

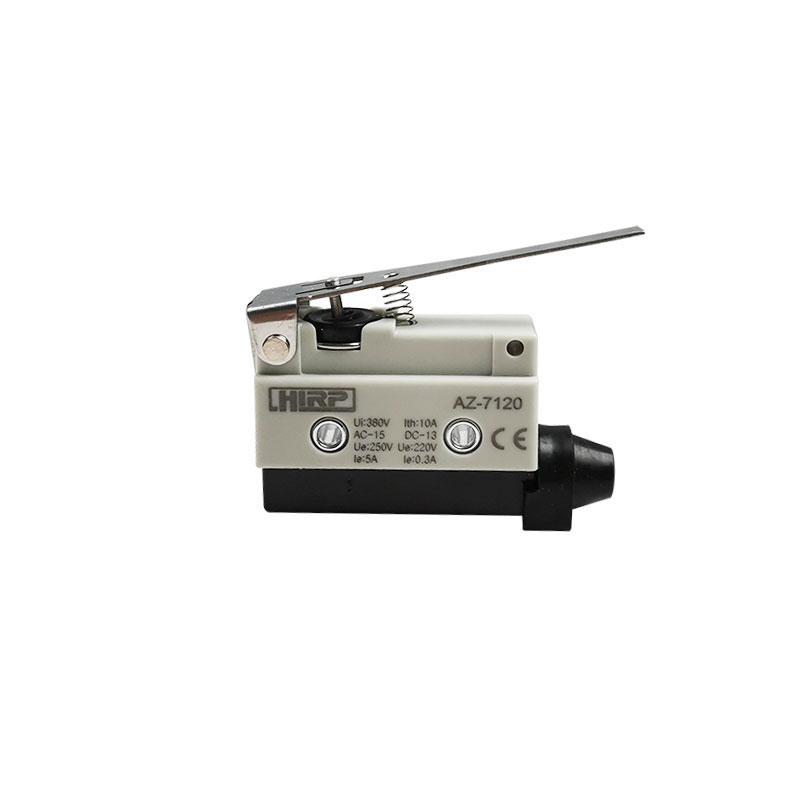

Micro Spring Limit Switch Lever Industrial Sensor
- Model Number
- AZ-7120
- Electricity Type
- AC
- Max voltage
- 250V
- Max Current
- 10A
- IP Grade
- IP40
- Warranty
- 1 year
- Contact type
- SPDT
- Frequency
- 50/60HZ
- Weight
- 0.06kg
- Mechanical Life
- 1,000,000 times above
- Electrical Life
- 100,000 times above
- Certificate
- CE,CCC
- Place of Origin
- Zhejiang, China
This is a mini limit switch with a built-in basic switch and a high-precision enclosed switch, which has high repeatability and durability of at least 10 million operations.
Limit Switch AZ-7120 type with high sensitivity and small operating travel 10A 250VAC
This is a mini limit switch with a built-in basic switch and a high-precision enclosed switch, which has high repeatability and durability of at least 10 million operations. Requires less operating force than conventional limit switches. Widely used in household appliances, electronic devices, and automotive electronics.
- High reliability and durability
- Flexible and multifunctional
- High precision triggering device
- Multiple connection methods
- Customer service and technical support
Characteristics:
- Operation Speed: 0.01mm-50cm/sec
- Operation Frequency:
Mechanical: 120 operations/minute;
Electrical: 30 operations/minute - Contact Resistance: 15m Ω max.(initial value)
- Insulation Resistance: 100m Ω min.(at 500VDC)
- Dieletric Strength:
1000VAC, 50/60Hz for 1 minute between terminals of the same polarity;
1,500VAC, 50/60Hz for 1minute between current-carrying and non-current-carrying metal parts;
1,500VAC, 50/60Hz for 1minute between each terminal and groun - Vibration: Action:10-55HZ, 1.5mm pairs swing
- Shock:
Mechanical Durability:1,000m/Sec2(about 100G'S);
Malfunction: 300m/Sec2(about 30G'S). - Ambient Temperature: -10~+80℃
- Humidity: <95% RH
-
Weight: About 60g
Operating Characteristics:
| Operating Characteristics | Model | AZ-7120 |
| Operation Force | OF(Max) | 1.47N |
| Restoring Force | RF(Min) | 0.392N |
| Pre Travel | PT(Max) | 13.5mm |
| Over Travel | OT(Min) | 4.0mm |
| Movement Differential | MD(Max) | 3.2mm |
| Operating Position | OP | 25±1(mm) |
| Free Position | FP | 35mm |

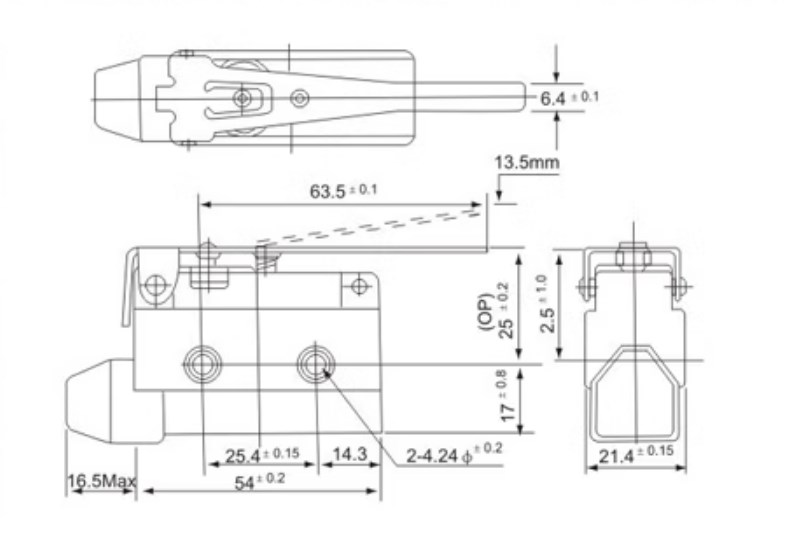

Products Drawings:

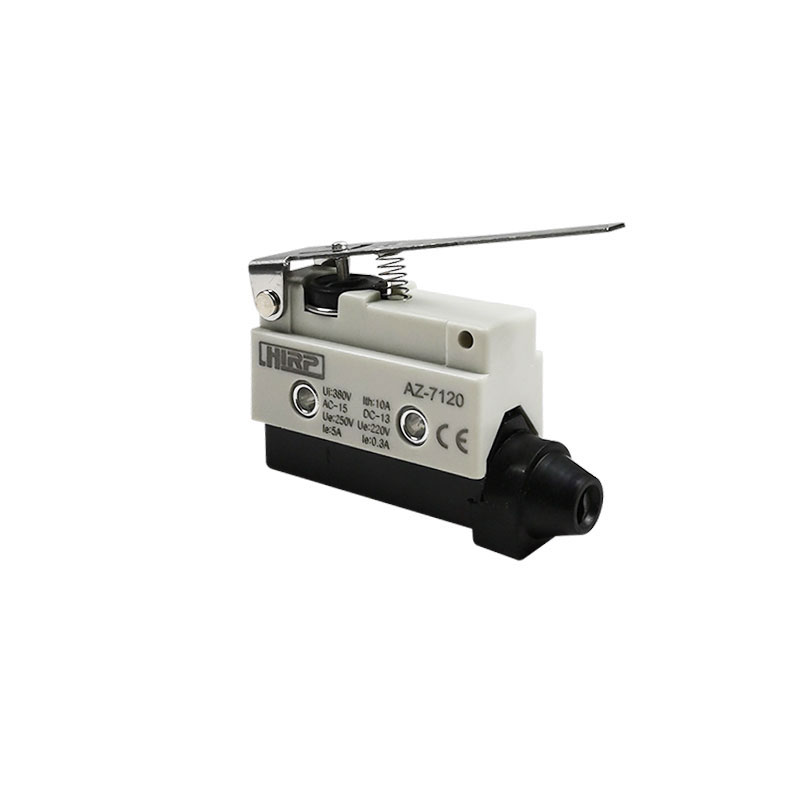

AZ series Products Picture
