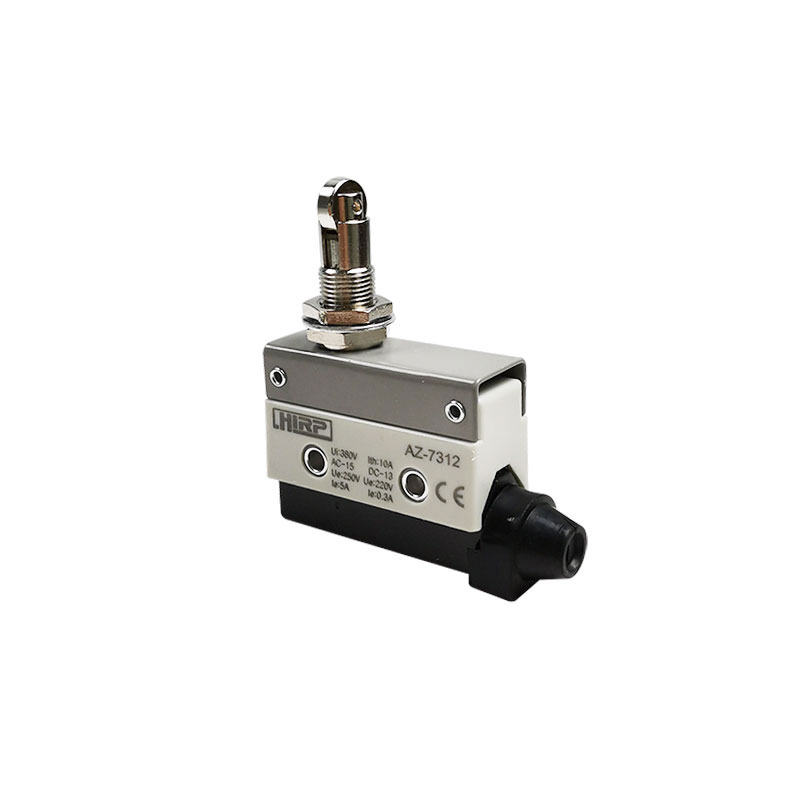

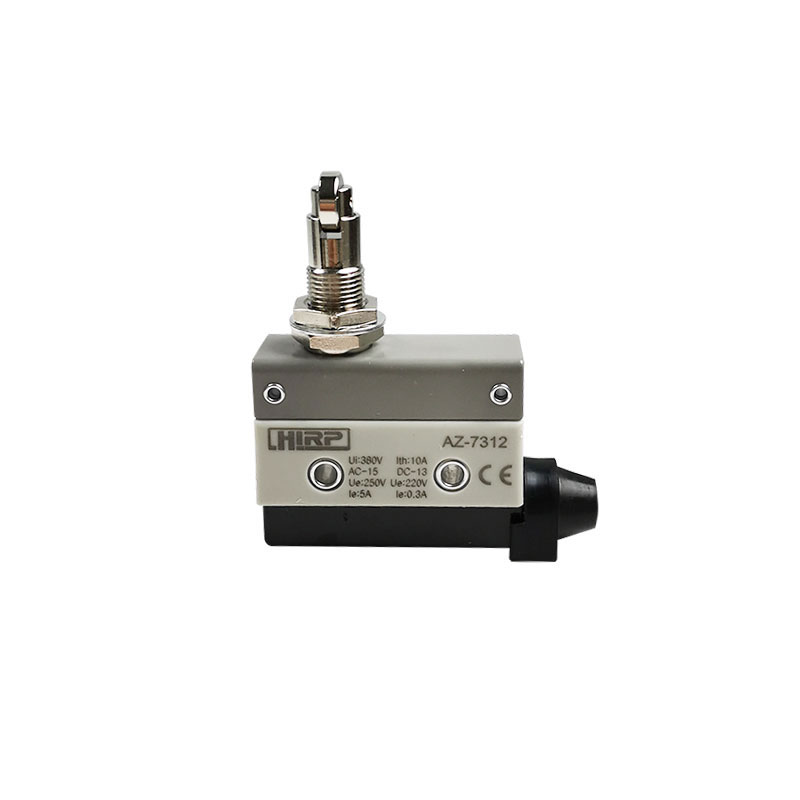

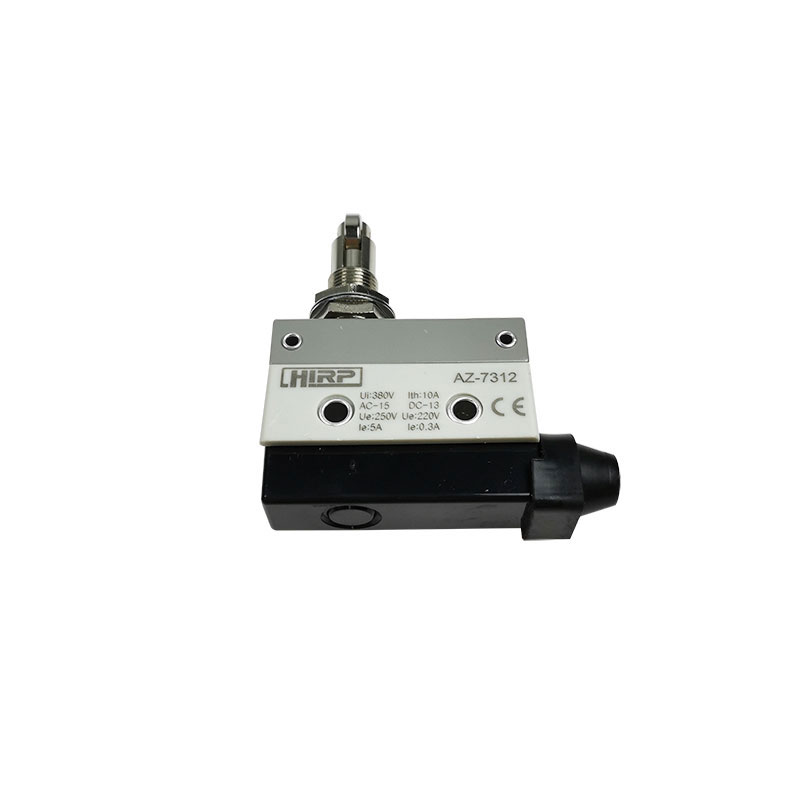

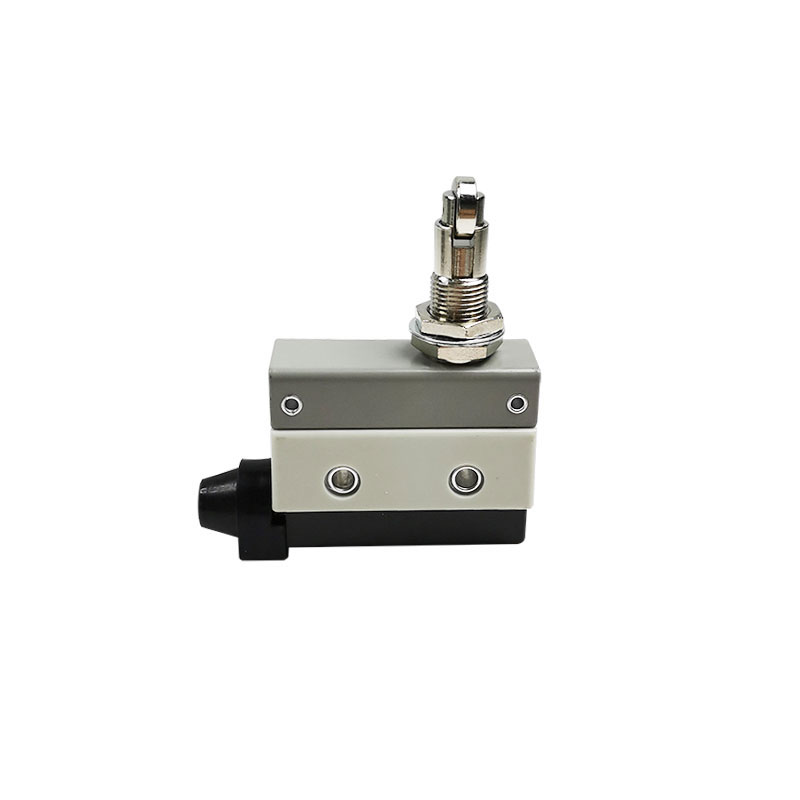

Travel Electrical Mini Limit Switch
- Model Number
- AZ-7312
- Electricity Type
- AC
- Max voltage
- 250V
- Max Current
- 10A
- IP Grade
- IP40
- Warranty
- 1 year
- Contact type
- SPDT
- Frequency
- 50/60HZ
- Weight
- 0.09kg
- Mechanical Life
- 1,000,000 times above
- Electrical Life
- 100,000 times above
- Certificate
- CE,CCC
- Place of Origin
- Zhejiang, China
This is a reliable and versatile component that is well-suited for a range of industrial and commercial applications.Travel limit switch are essential components that find their way into a range of electronic devices,
Main features of AZ-7312
- Versatility: It can be used in a wide range of applications, including vending machines, printers, and medical devices. It's long actuation distance also makes it well-suited for use in industrial applications, such as conveyor systems, where quick responses are essential.
- High Contact Pressure: The spring is designed with higher tension, ensuring a more robust contact between the switch's contacts. Makeing it suitable for high-current applications.
- Unique Design & Easy to Install: It can be quickly and easily integrated into any circuit or device.
Characteristics:
| Operation Speed | 0.01mm-50cm/sec |
| Operation Frequency | Mechanical: 120 operations/minute; Electrical: 30 operations/minute |
| Contact Resistance | 15m Ω max.(initial value) |
| Insulation Resistance | 100m Ω max.(at 500VDC) |
| Dielectric Strength | 1000VAC, 50/60Hz for 1 minute between terminals of the same polarity |
| 1500VAC, 50/60Hz for 1 minute between current-carrying and non-current-carrying metal parts | |
| 1500VAC, 50/60Hz for 1 minute between each terminal and ground | |
| Vibration | Action:10-55HZ, 1.5mm pairs swing |
| Shock | Mechanical Durable: 1,000m/Sec2(about 100G'S); Malfunction: 300m/Sec2(about 30G'S) |
| Ambient Temperature | -10~+80℃ |
| Humidity | <95% RH |
| Weight | About 60g |
Operating Characteristics:
| Operating Characteristics | Model | AZ-7312 |
| Operation Force | OF(Max) | 5.88N |
| Restoring Force | RF(Min) | 0.98N |
| Pre Travel | PT(Max) | 2.0mm |
| Over Travel | OT(Min) | 6.0mm |
| Movement Differential | MD(Max) | 0.8mm |
| Operating Position | OP | 33.3±1.2(mm) |
Ratings:
Products Drawings:

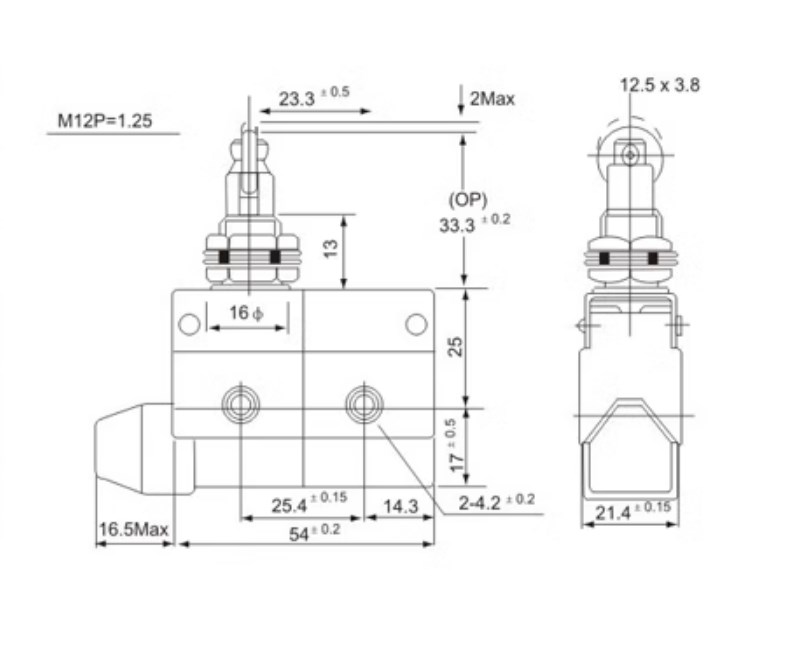

AZ series Products Picture
