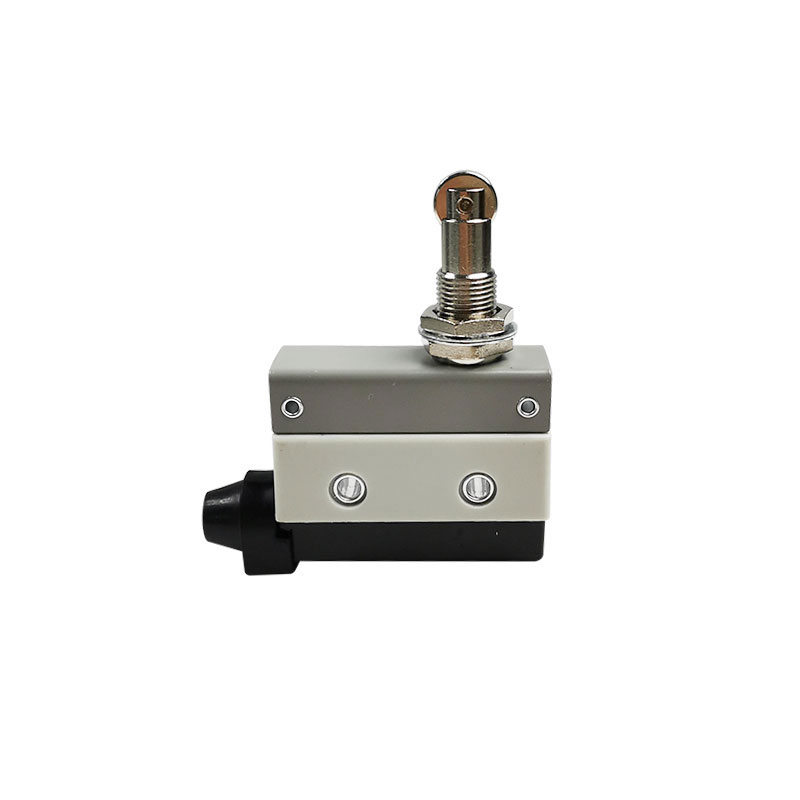

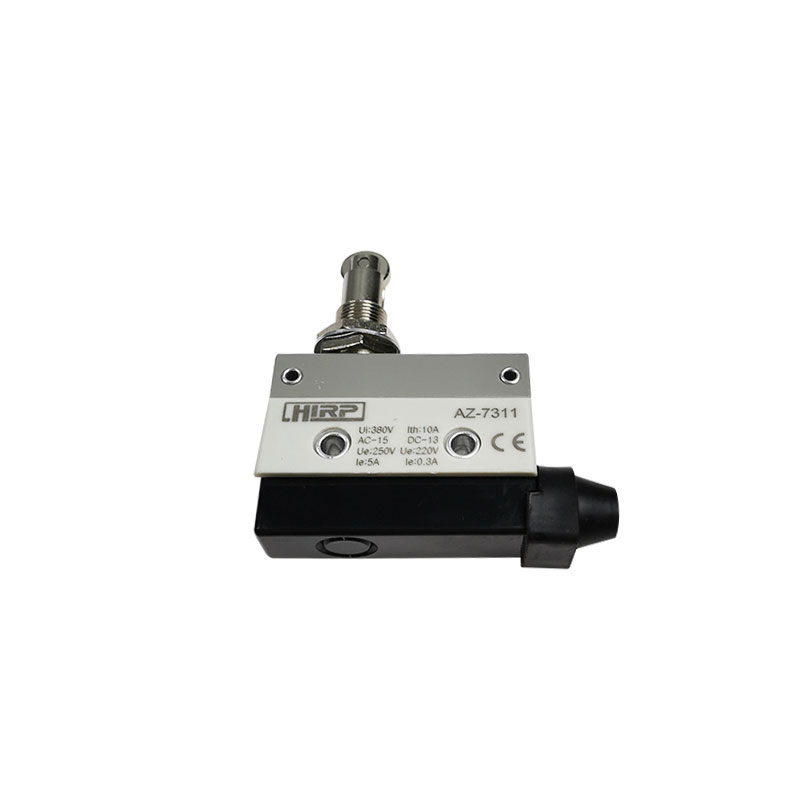

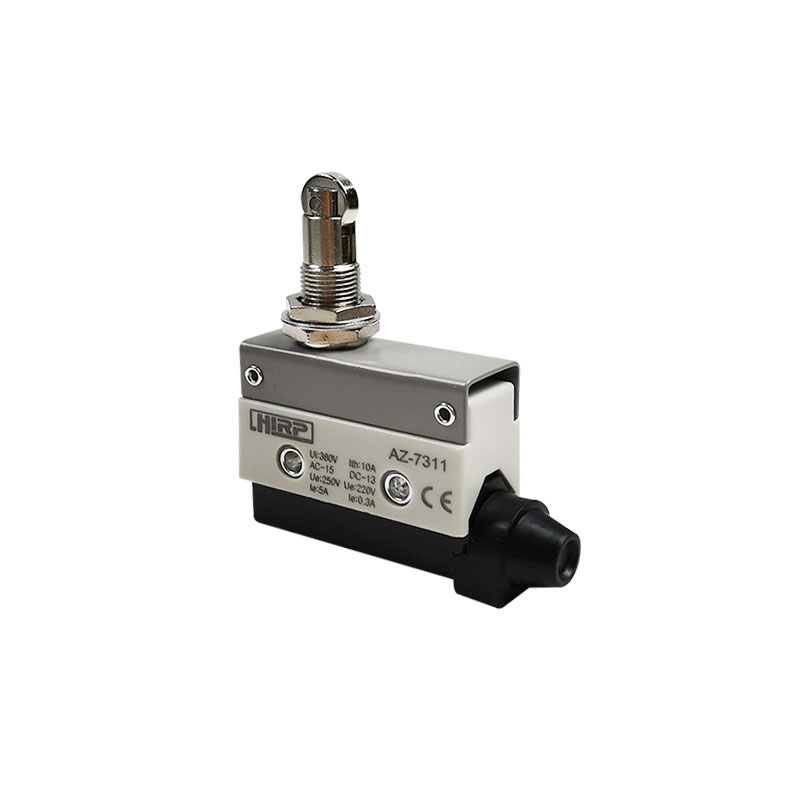

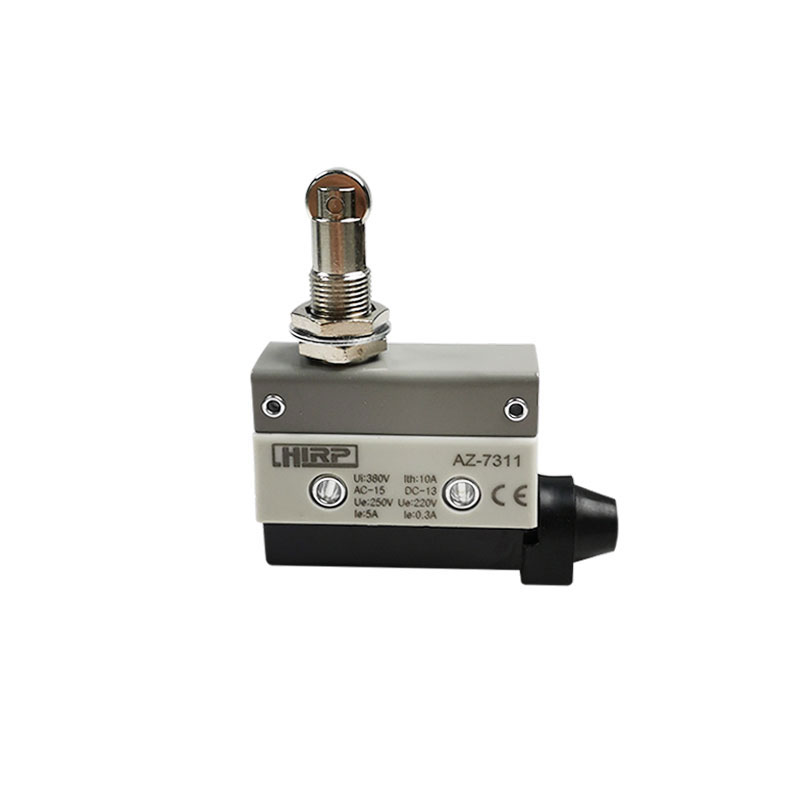

Small Roller Universal Limit Switch 220vac

Model Number

AZ-7311

Electricity Type

Max voltage

250V

Max Current

10A

IP Grade

IP40

Warranty

1 year

Contact type

SPDT

Frequency

50/60HZ

Weight

0.09kg

Mechanical Life

1,000,000 times above

Electrical Life

100,000 times above

Certificate

CE,CCC

Place of Origin

Zhejiang, China

This is a limit switch with with high quality and long life 10A 250VAC.Featuring compact structure, high sensitivity, small operating stroke, and long mechanical life and is widely used.

Limit Switch AZ-7311 type with high quality and long life 10A 250VAC

Metal enclosed Micro Limit Switch AZ-7311 is miniaturized mechanical switches that provide quick and precise switching action. Featuring excellent durability, reliability, and long lifespan. Its robust construction, which allows it to withstand harsh environments and repeated use.And the longer lever arm also has a longer stroke length, allowing it to cover a wider range of applications.

Characteristics:

Operation Speed	0.01mm-50cm/sec
Operation Frequency	Mechanical: 120 operations/minute; Electrical: 30 operations/minute
Contact Resistance	15m Ω max.(initial value)
Insulation Resistance	100m Ω max.(at 500VDC)
Dielectric Strength	1000VAC, 50/60Hz for 1 minute between terminals of the same polarity
	1500VAC, 50/60Hz for 1 minute between current-carrying and non-current-carrying metal parts
	1500VAC, 50/60Hz for 1 minute between each terminal and ground
Vibration	Action:10-55HZ, 1.5mm pairs swing
Shock	Mechanical Durable: 1,000m/Sec²(about 100G'S); Malfunction: 300m/Sec²(about 30G'S)
Ambient Temperature	-10~+80℃
Humidity	<95% RH
Weight	About 60g

Operating Characteristics:

Operating Characteristics	Model	AZ-7311
Operation Force	OF(Max)	5.88N
Restoring Force	RF(Min)	0.98N
Pre Travel	PT(Max)	2.0mm
Over Travel	OT(Min)	6.0mm
Movement Differential	MD(Max)	0.8mm

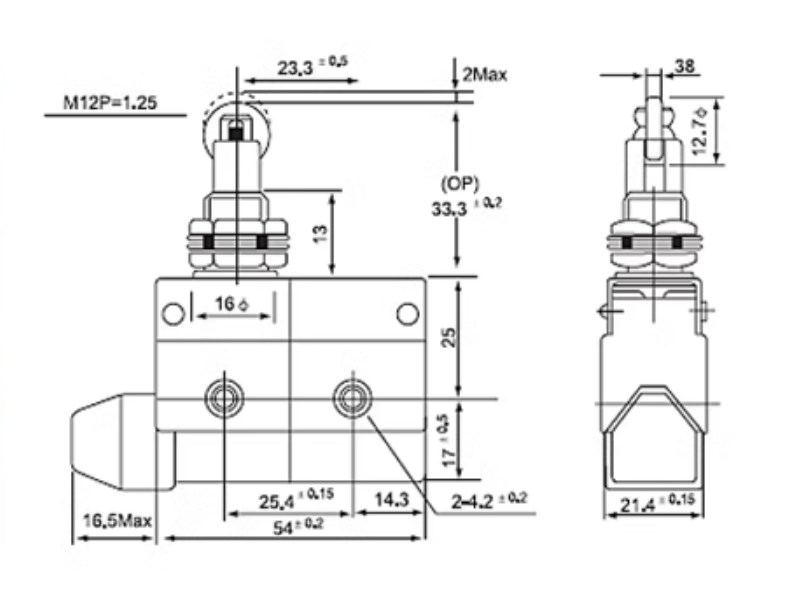

Operating Position	OP	33.3±1.2(mm)
