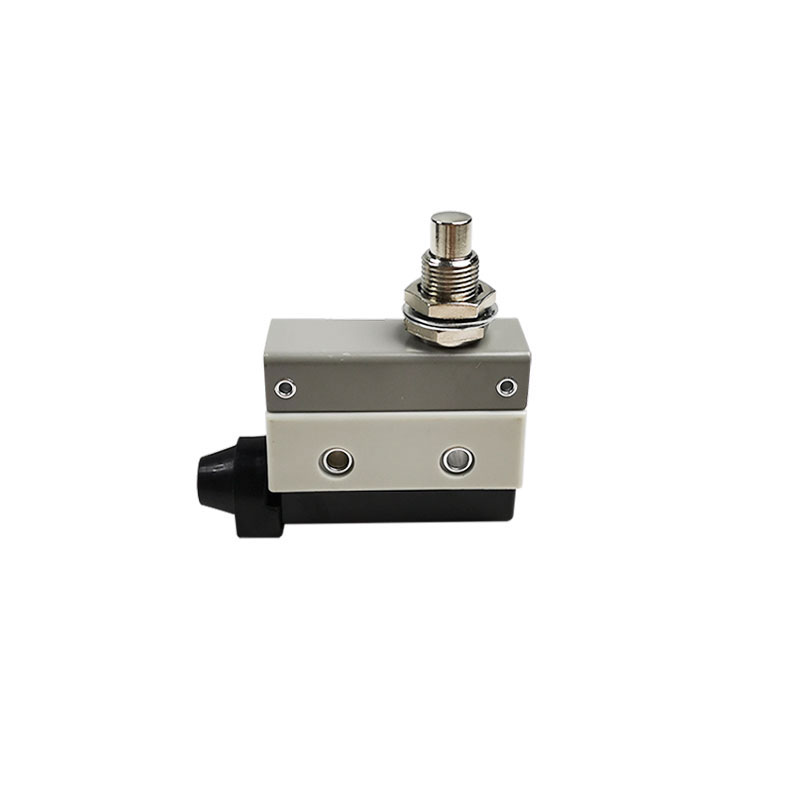

Micro Switch Heavy Duty Momentary Limit Switch

Model Number

AZ-7310

Electricity Type

Max voltage

250V

Max Current

10A

IP Grade

IP40

Warranty

1 year

Contact type

SPDT

Frequency

50/60HZ

Weight

0.09kg

Mechanical Life

1,000,000 times above

Electrical Life

100,000 times above

Certificate

CE,CCC

Place of Origin

Zhejiang, China

The AZ-7310 model Push Plunger Micro Switches is an excellent micro switch that offers a range of benefits, including its longer length, high-level of durability, and versatility.

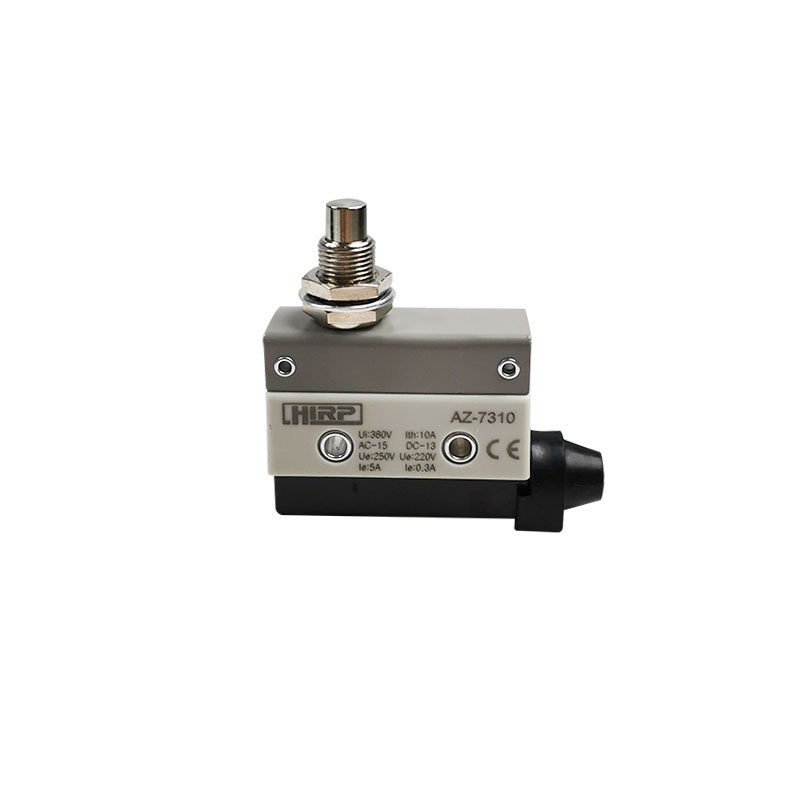

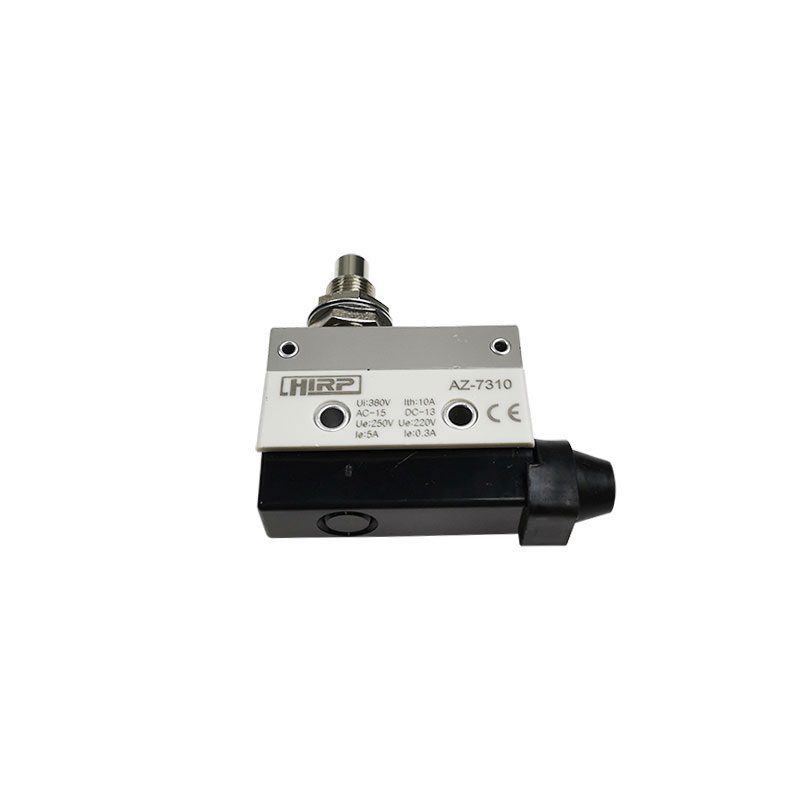

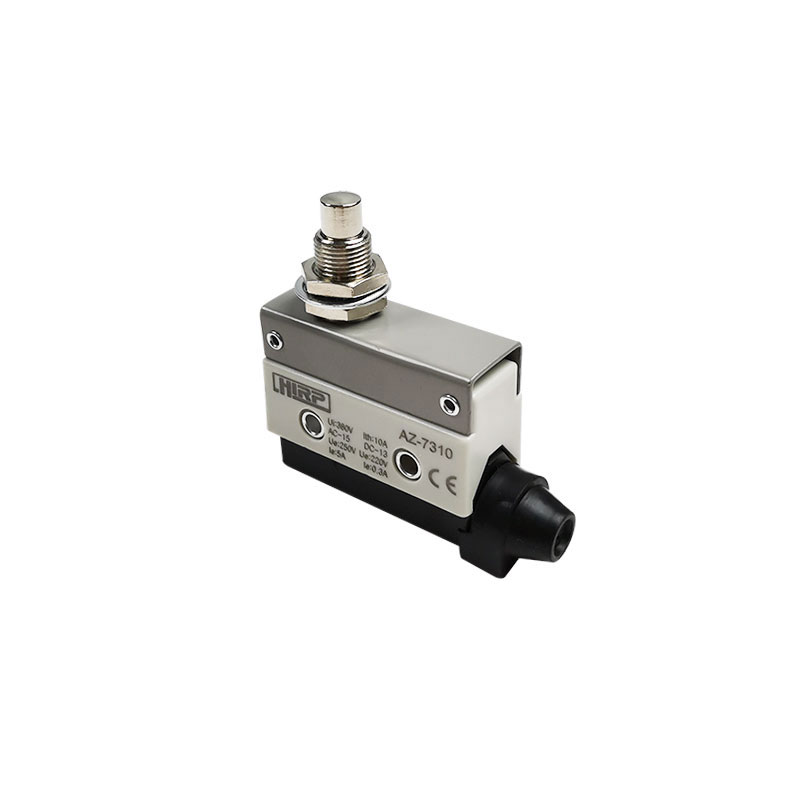

Push Plunger Micro Switches AZ-7310

The AZ-7310 model Push Plunger Micro Switches is an excellent micro switch that offers a range of benefits, including its longer length, high-level of durability, and versatility. The switch is housed in a small, compact design, making it easy to integrate into most applications. With its rugged construction, the switch is able to withstand the harshest industrial environments, making it ideal for use in applications that require a high level of durability and reliability.

Characteristics:

Operation Speed: 0.01mm-50cm/sec
Operation Frequency:
Mechanical: 120 operations/minute;
Electrical: 30 operations/minute
Contact Resistance: 15m Ω max.(initial value)
Insulation Resistance: 100m Ω min.(at 500VDC)
Dieletric Strength:
1000VAC, 50/60Hz for 1 minute between terminals of the same polarity;
1,500VAC, 50/60Hz for 1minute between current-carrying and non-current-carrying metal parts;
1,500VAC, 50/60Hz for 1minute between each terminal and groun
Vibration: Action:10-55HZ, 1.5mm pairs swing
Shock:
Mechanical Durability:1,000m/Sec²(about 100G'S);
Malfunction: 300m/Sec²(about 30G'S).
Ambient Temperature: -10~+80℃
Humidity: <95% RH
Weight: About 60g

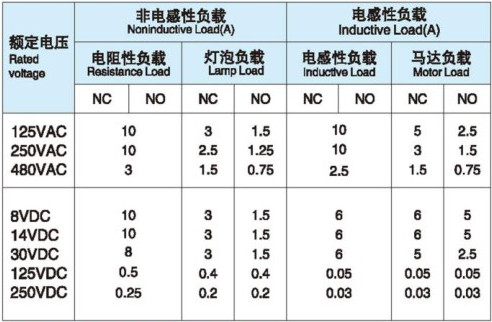

Ratings:

Micro Switch Heavy Duty Momentary Limit Switch

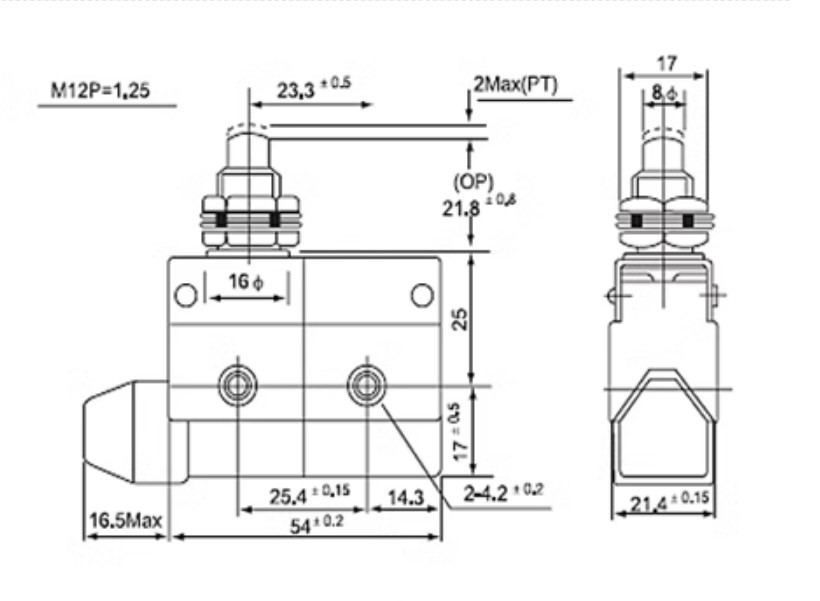

Operating Characteristics:

Operating Characteristics	Model	AZ-7310
Operation Force	OF(Max)	5.88N
Restoring Force	RF(Min)	0.98N
Pre Travel	PT(Max)	2.0mm
Over Travel	OT(Min)	6.0mm
Movement Differential	MD(Max)	0.8mm
Operating Position	OP	21.8±1.2(mm)
