Micro Industrial Limit Control Switch Types

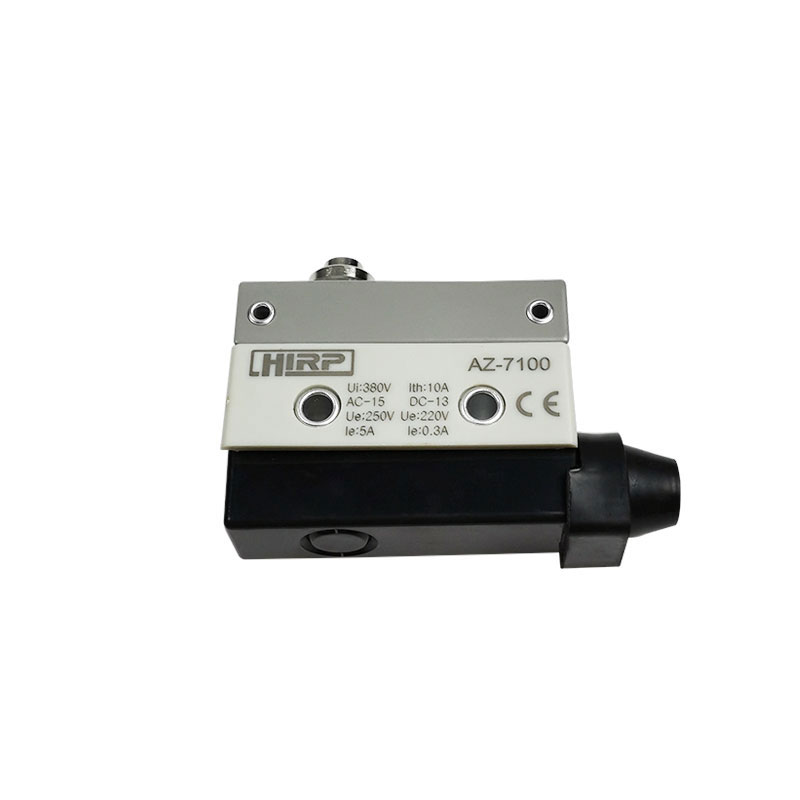

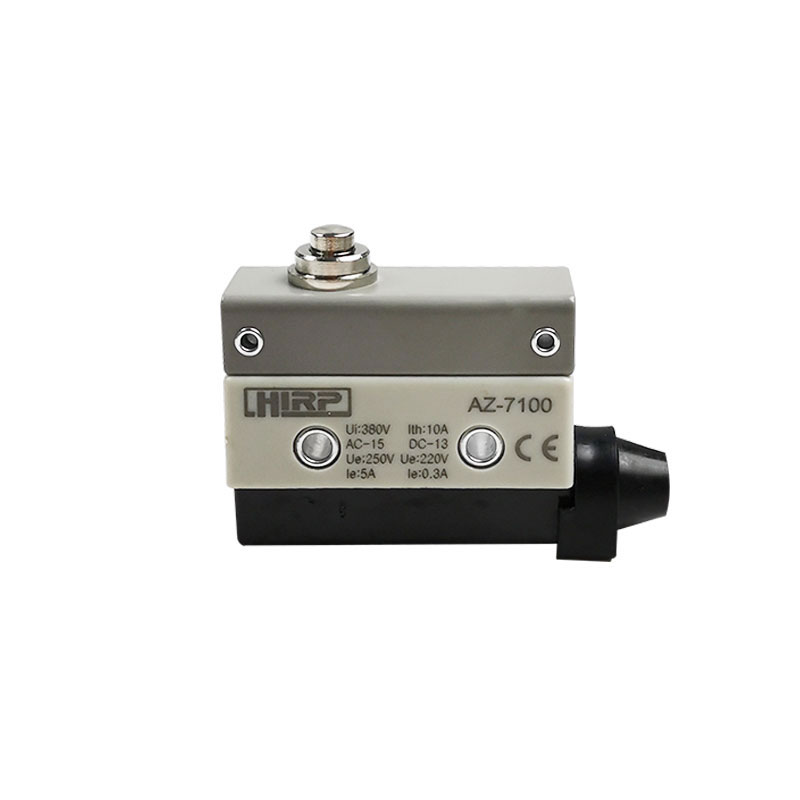

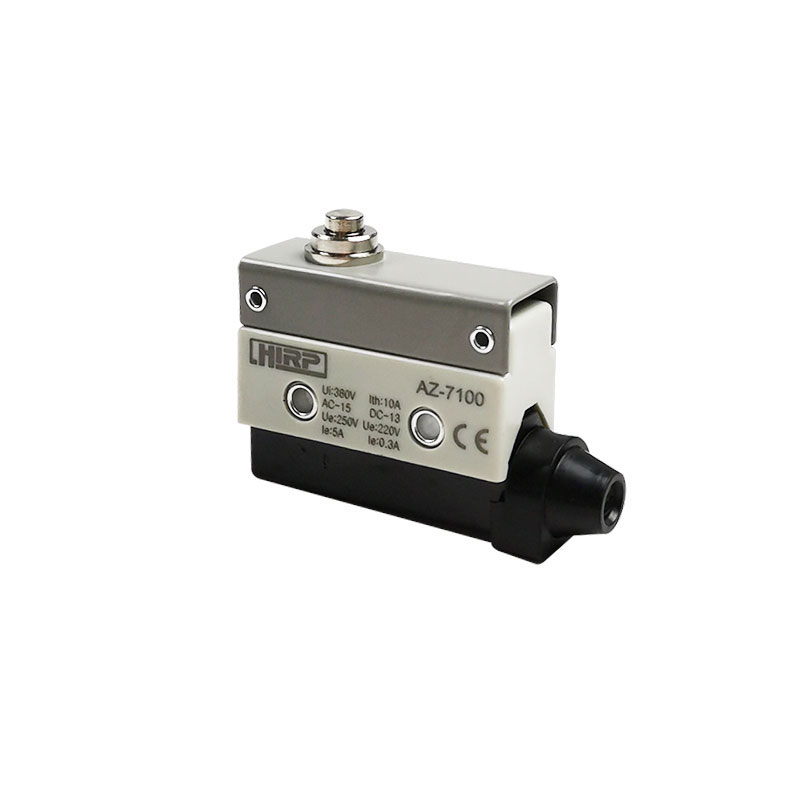

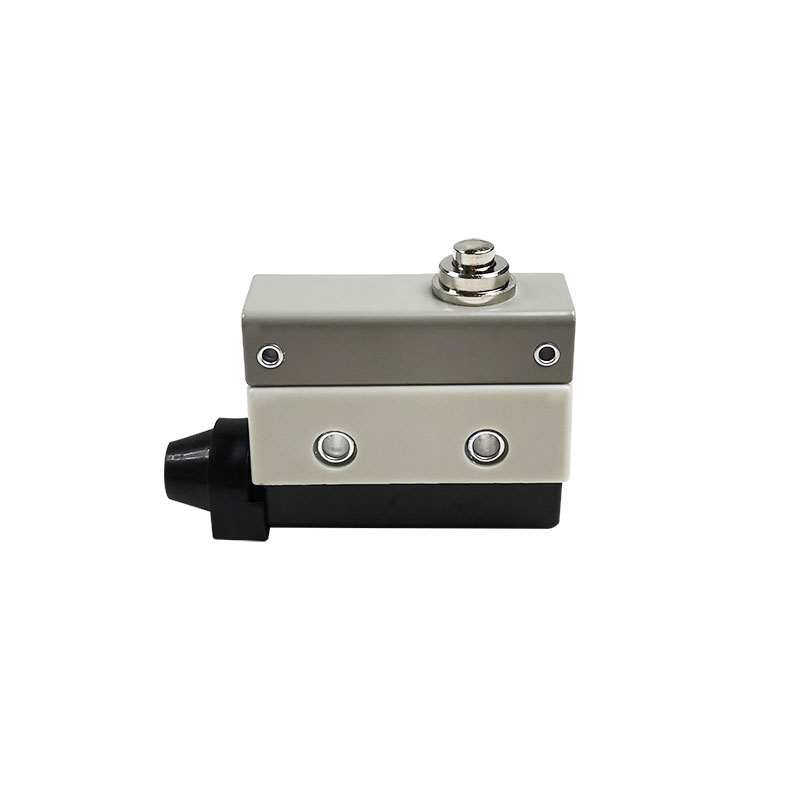

AZ-7100 limit micro witch is a high-quality and reliable device with excellent performance parameters. Its compact size and long-life span make it suitable for various applications,such as home appliances,industrial machinery, automotive industry.

AZ series Features:

• Enclosed switches with built-in basic switches for high repeatability and duiability of 10 million operations minimum.
• Panel mount versions have the same operating position as Z basic switch.
• Suitable for applications demanding higher mechanicl strength, dustproof and drip-proof properties than those on basic switches.
• Requires less operating force than conventional limit switches.
• Compact structure, high sensitivity, small operating stroke, and long mechanical life.

Characteristics:

1. Operation Speed: 0.01mm-50cm/sec
2. Operation Frequency:
   Mechanical: 120 operations/minute;
   Electrical: 30 operations/minute
3. Contact Resistance: 15m Ω max.(initial value)
4. Insulation Resistance: 100m Ω min.(at 500VDC)
5. Dieletric Strength:
   1000VAC, 50/60Hz for 1 minute between terminals of the same  polarity;
   1,500VAC, 50/60Hz for 1minute between current-carrying and non-current-carrying metal parts;
   1,500VAC, 50/60Hz for 1minute between each terminal and groun
6. Vibration: Action:10-55HZ, 1.5mm pairs swing
7. Shock:
   Mechanical Durability:1,000m/Sec²(about 100G'S);
   Malfunction: 300m/Sec²(about 30G'S).
8. Ambient Temperature: -10~+80℃
9. Humidity: <95% RH

10. Weight: About 60g

Operating Characteristics:

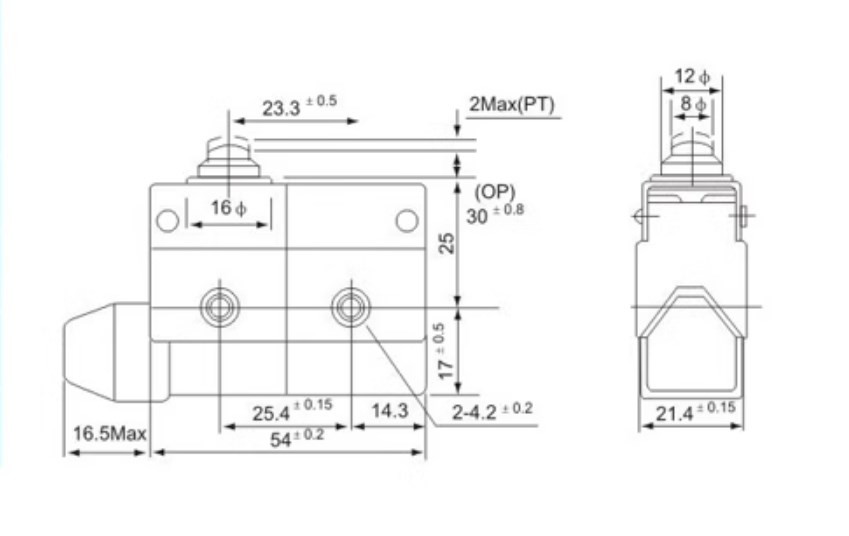

Products Drawings:

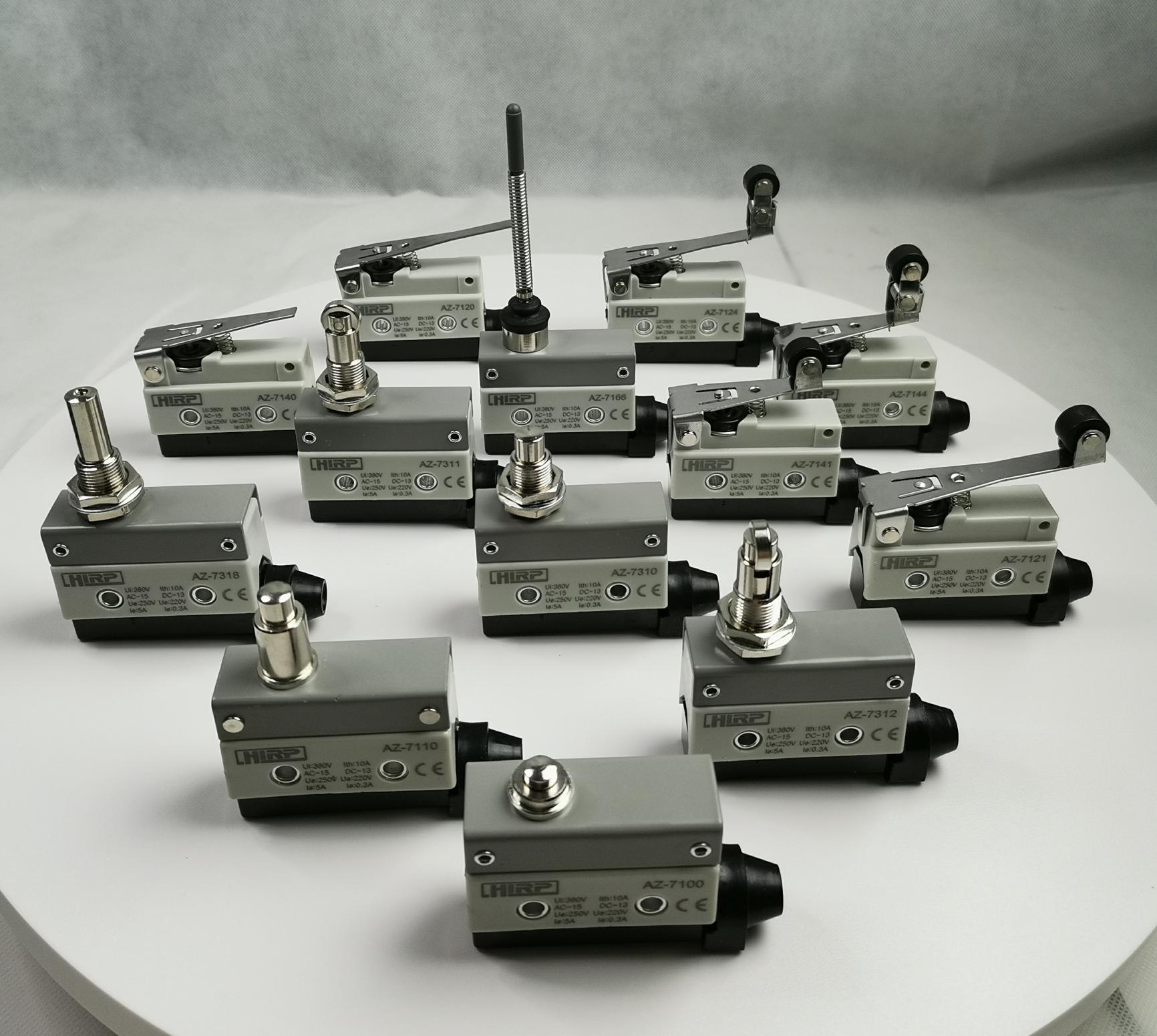

AZ series Products Picture
