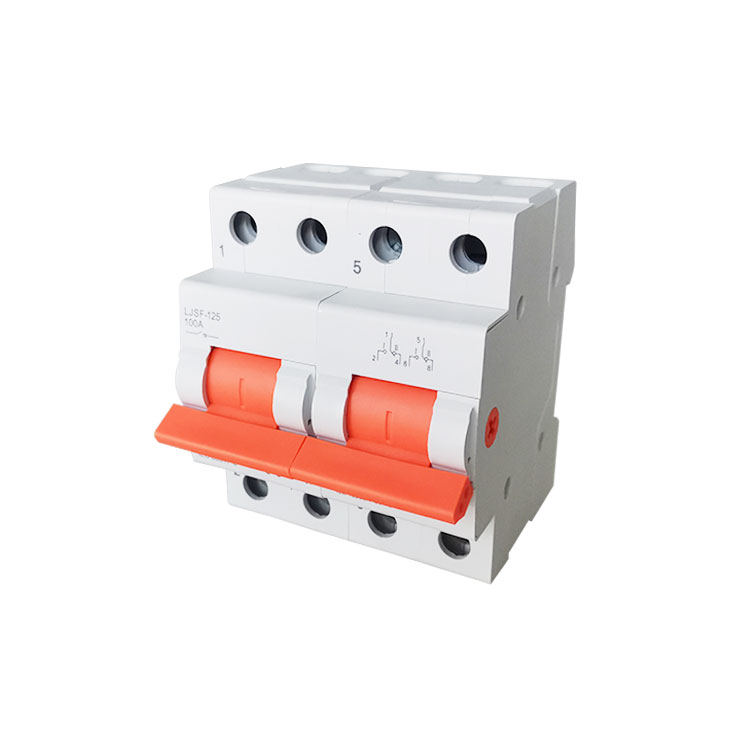

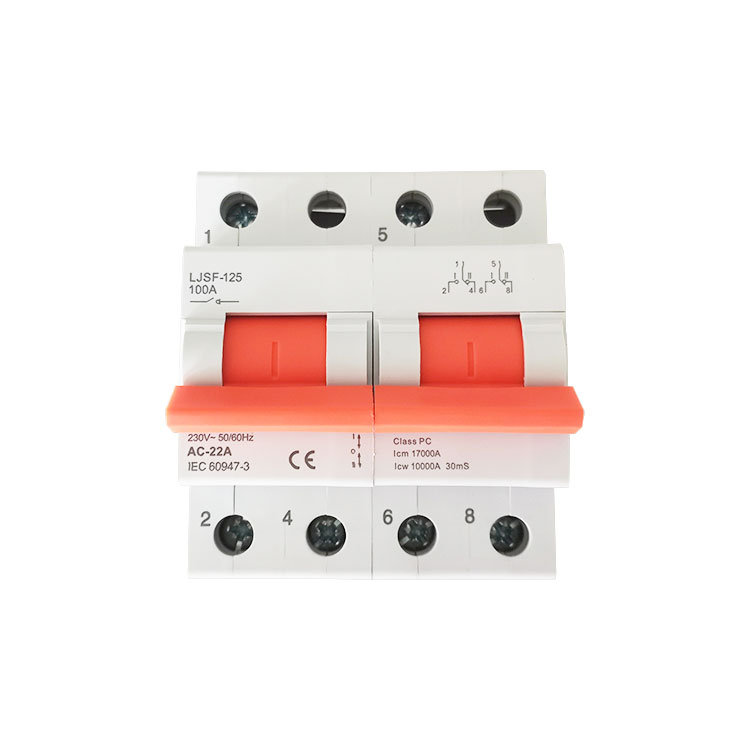

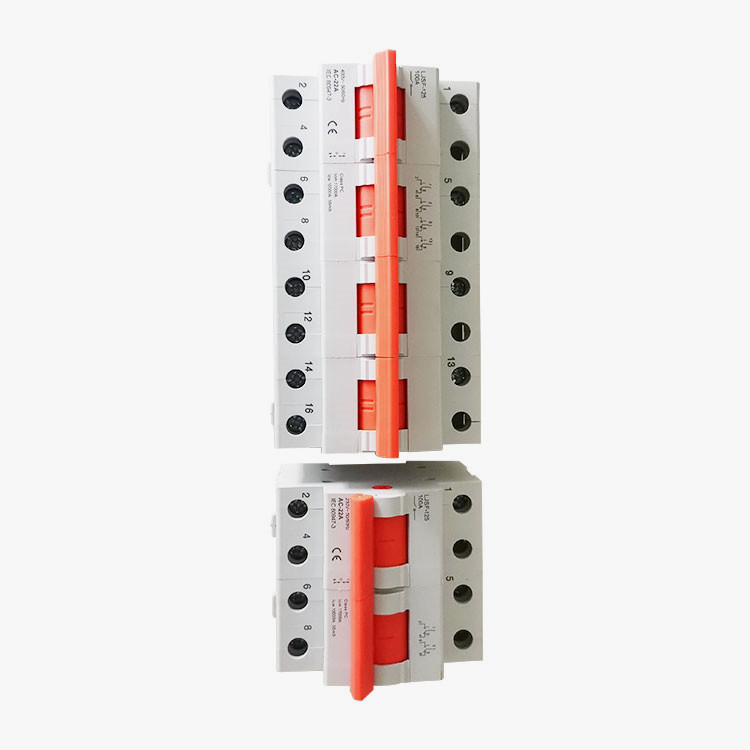

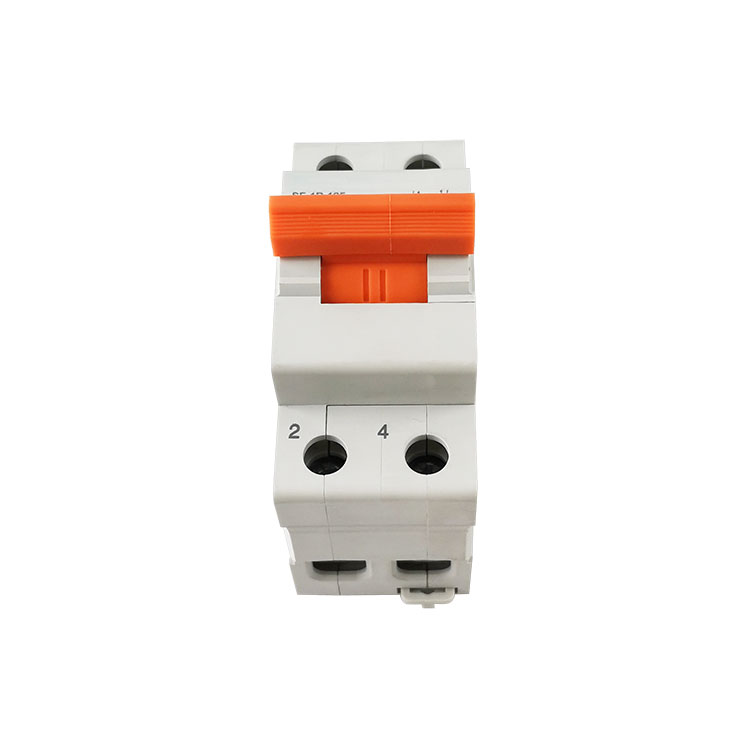

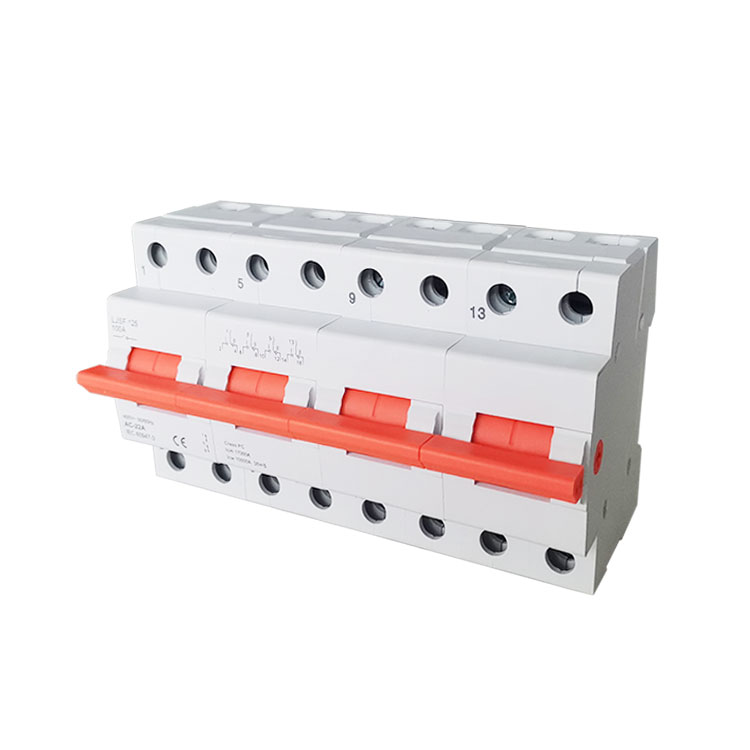

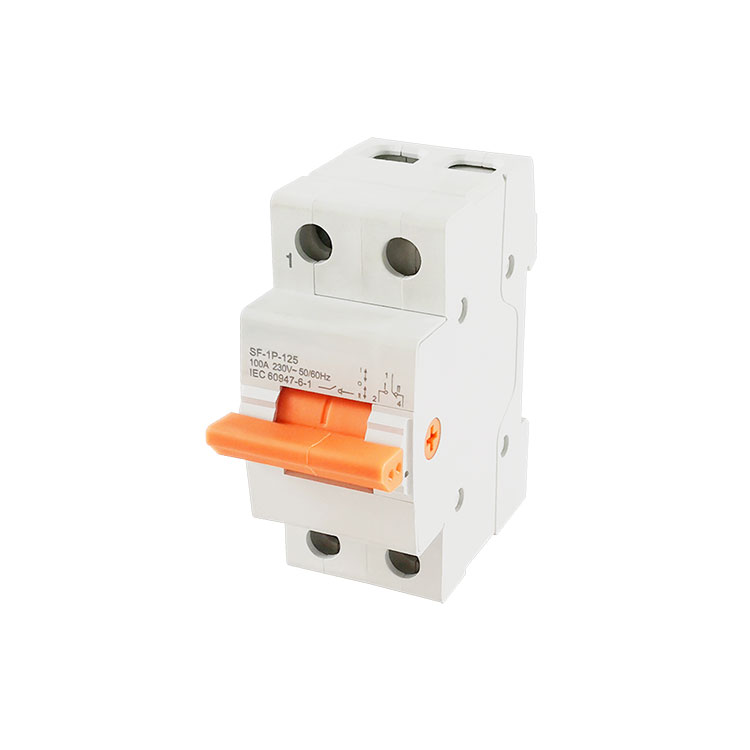

Dual Power Transfer Switch Modular Manual Changeover Switch LJSF-125
- Model Number
- LJSF-125
- Electricity Type
- AC
- Rated Work Current
- 63A, 80A, 100A, 125A
- Rated Work Voltage
- 240-415V
- Number of Contact
- 1P, 2P, 3P, 4P
- Frequency
- 50Hz-60Hz
- Certificate
- CE, ISO9001
- Place of Origin
- Zhejiang, China
- Standard
- IEC60947-3, EN60947-3
The changeover switch can switch on, load and break the circuit under normal conditions, using as switch disconnectors.
Application
The changeover switch can switch on, load and break the circuit under normal conditions, using as switch disconnectors.
Specifification
| Rated voltage | 240/415V |
| Rated current | 63A 80A 100A 125A |
| Rated frequency | 50/60Hz |
| Number of poles | 1P 2P 3P 4P |
| Contact form | I-O-II |
| Electrical life | 1500 |
| Mechanical life | 8500 |
| Protection degree | IP20 |
| Ambient termperature | -5℃-40℃ |
| Terminal/Cable size | 50mm2 |
| Mounting | On din rail EN60715(35mm)by means of fast clip device |

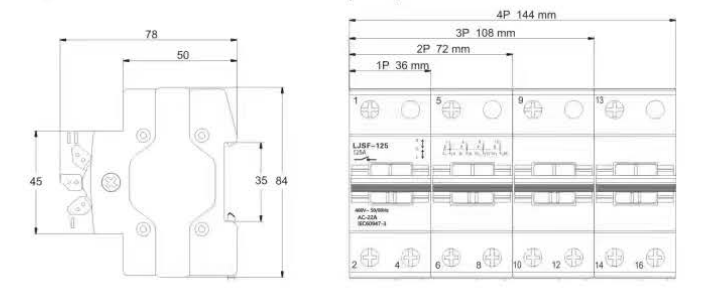

Overall and Mounting Dimension
