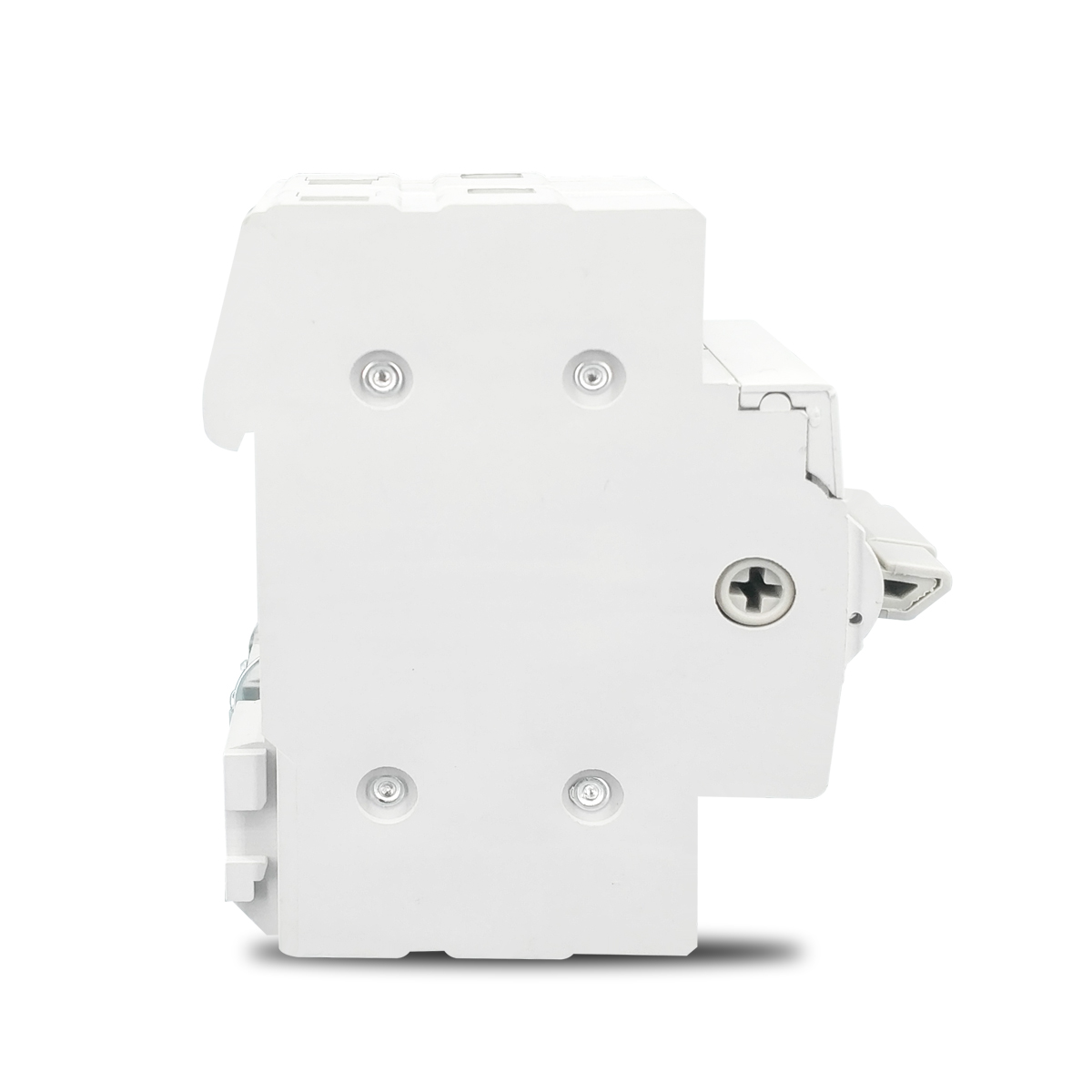

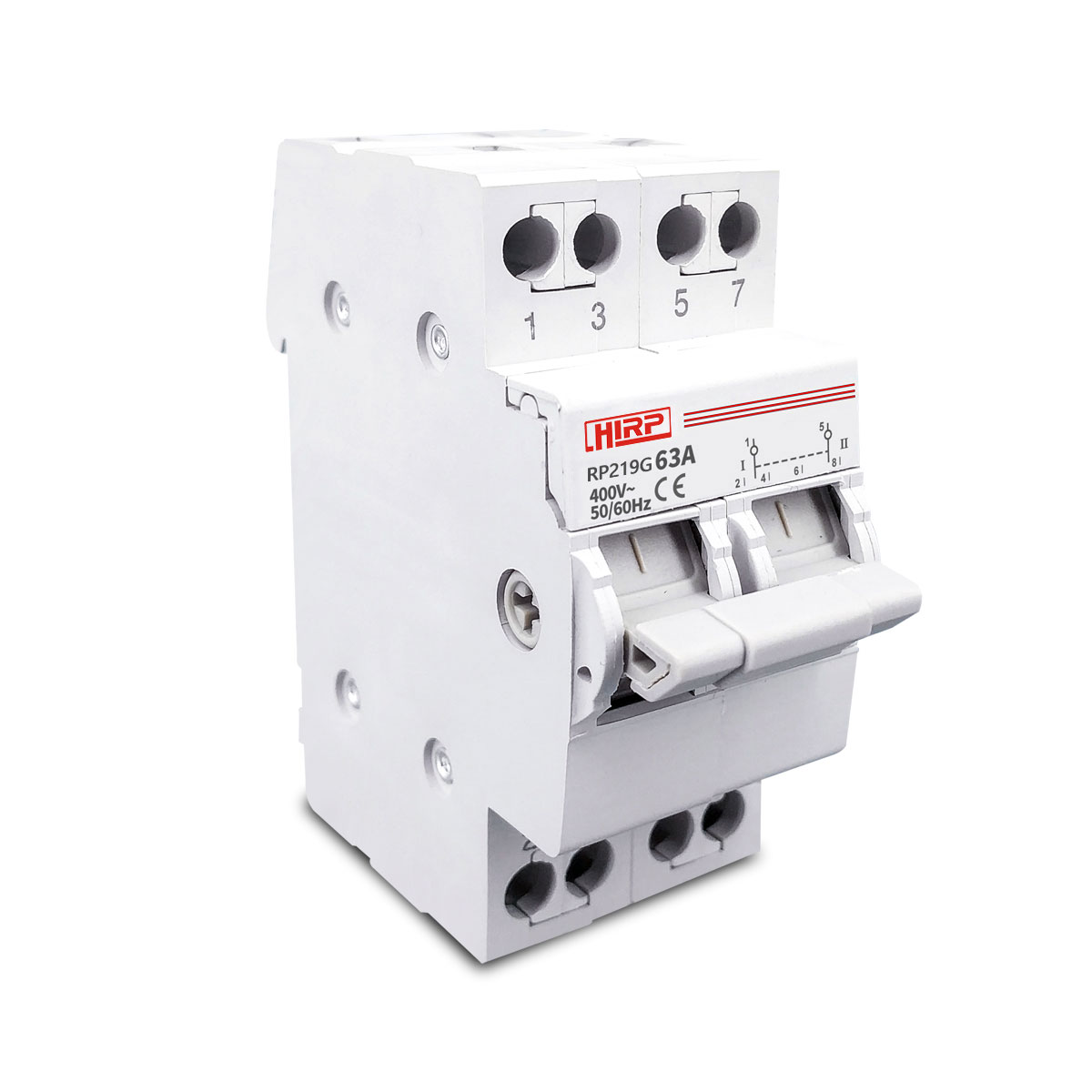

Dual Power Transfer Switch Modular Manual Changeover Switch RP219G

Model Number

RP219G

Electricity Type

Rated Work Current

16A 20A 25A 32A 40A 63A

Rated Work Voltage

230/400V

Number of Contact

1,2,3,4P

Frequency

50/60Hz

Certificate

CE, ISO9001

Place of Origin

Zhejiang, China

Standard

IEC/EN60947-3

Dual power Transfer Switch Modular Manual Changeover Switch RP series Din rail type small transfer switch, mainly suitable for AC 50 Hz or 60 Hz, rated voltage below 230-400V, rated current 16A to 6

Dual power Transfer Switch Modular Manual Changeover Switch

RP series Din rail type small transfer switch, mainly suitable for AC 50 Hz or 60 Hz, rated voltage below 230-400V, rated current 16A to 63A A switching device used for switching between two power sources or loads in a resistance and inductance hybrid circuit. It can realize the switching function of the circuit and the function of an isolating switch. Use place such as electricity The power supply of industrial equipment is switched, the motor is reversed, and the voltage and current in the measurement loop are exchanged. Products comply with IEC60947-3, EN60947-3 standards.

Specification

Standard	IEC/EN60947-3
Rated voltage	230/400V
Rated current	16A 20A 25A 32A 40A 63A
Rated frequency	50/60Hz
Number of poles	1,2,3,4P
Contact form	I-O-II
Electrical Life	1500
Mechanical Life	8500
Protection degree	IP20
Ambient Temperature	-5ºC…40ºC
Terminal/Cable size	16
Mounting	On DIN rail EN60715(35mm) by means of fast clip device
