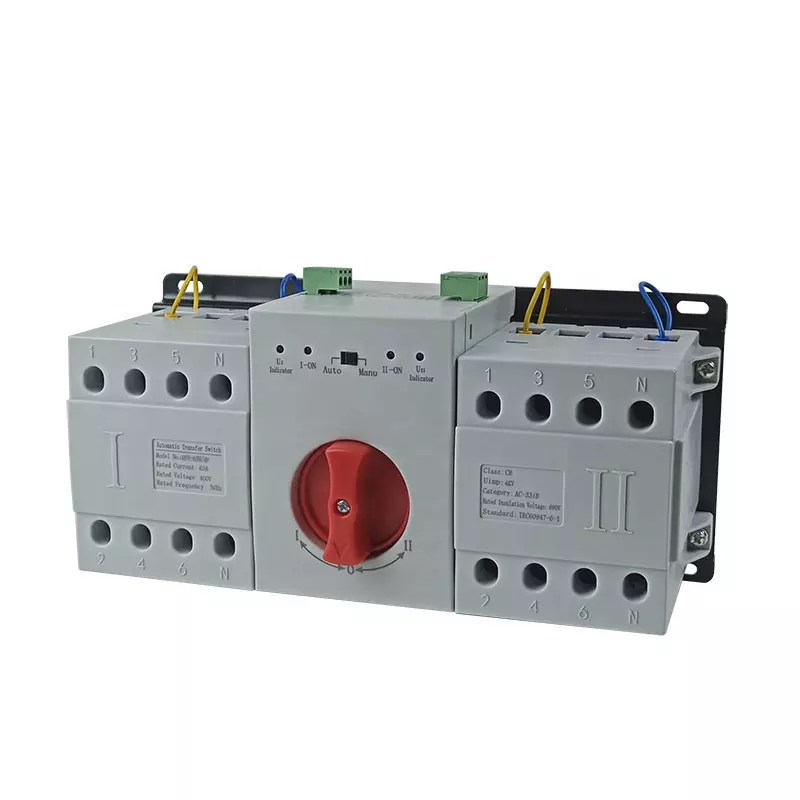

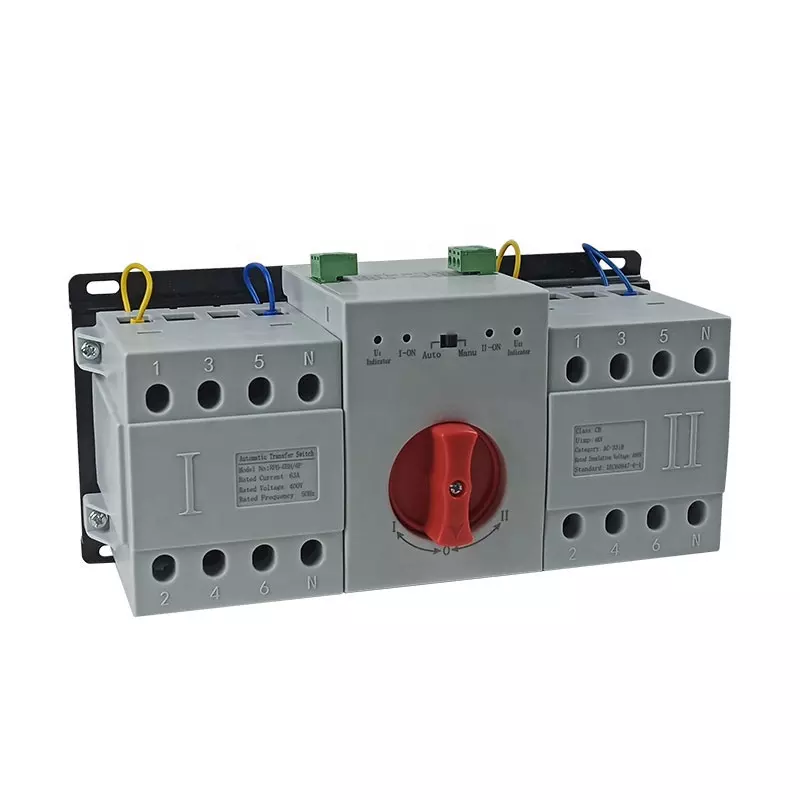

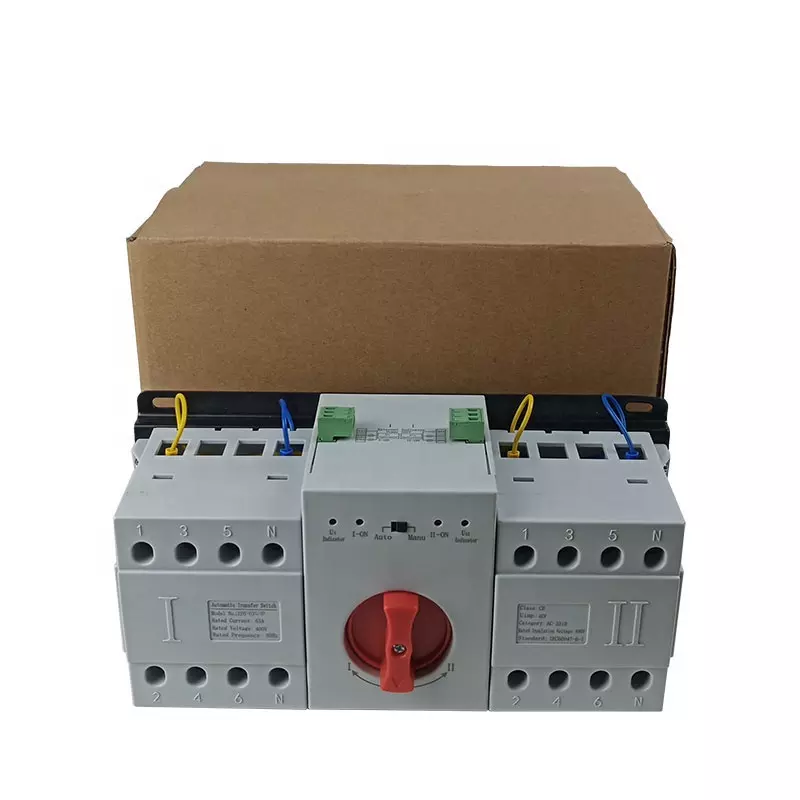

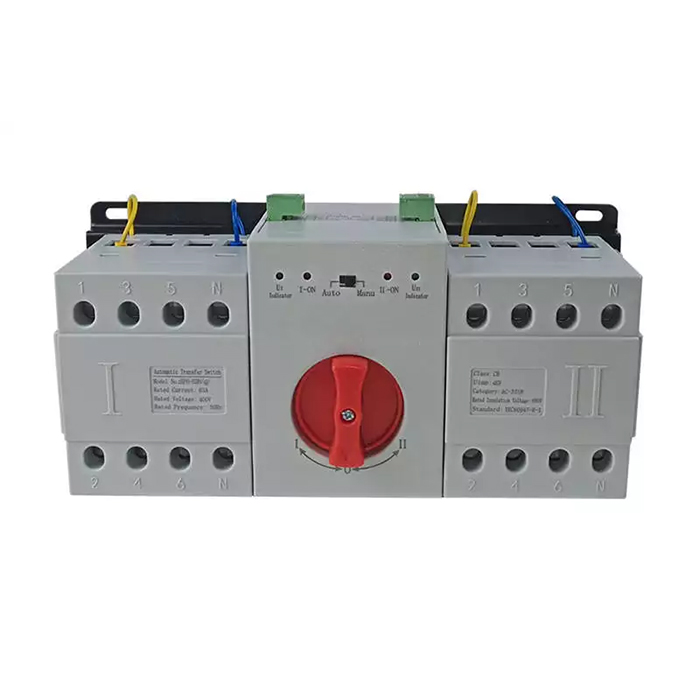

RP6-63N Double Power 63A (CB) Level Electrical Single Phase Automatic Changeover Switch
- Model Number
- RP6-63N
- Frequency
- 50/60Hz
- Certificate
- CE Rohs
- Place of Origin
- Zhejiang, China
RP6-63N is terminal type ATS. It’s suitable for 3 phases 4 wires (or 1 phase 1 wire) dual power grid with AC 50/60Hz, rated voltage 400V/230V and rated current up to 63A.
Double Power Automatic Transfer Switch Manual Changeover Switches
RP6-63N is terminal type ATS. It’s suitable for 3 phases 4 wires (or 1 phase 1 wire) dual power grid with AC 50/60Hz, rated voltage 400V/230V and rated current up to 63A. When one power goes wrong,it will connect one or several load circuits from one power to the other power automatically, to ensure normal power supply of load circuits. The ATS conforms to IEC60947-6-1 and GB/T14048.11
|

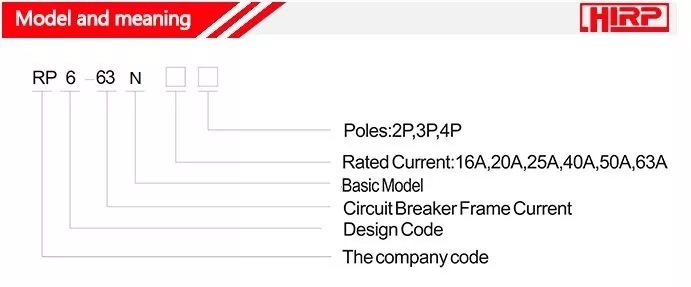

Model |
Poles |
Rated Working Voltage Ue(V)ac |
Rated Current In(A) |
Rated Frequency |
Control Voltage(V) |
Transfer Time |
|
RP6-63N |
2P/3P/4P |
400V |
16,20,25,32,40,50,63 |
50/60Hz |
220V |
1.5-3S |
***Non-Standard Control voltage:120V/110V customized.
