RP6-63L 4P 63A 220V Control Voltage Single Phase Automatic Changeover Switch
- Model Number
- RP6-63L
- Frequency
- 50/60Hz
- Certificate
- CE, ROHS
- Place of Origin
- Zhejiang, China
RP6-63L is terminal type ATS. It’s suitable for 3 phases 4 wires (or 1 phase 1 wire) dual power grid with AC 50/60Hz, rated voltage 400V/230V and rated current up to 63A.

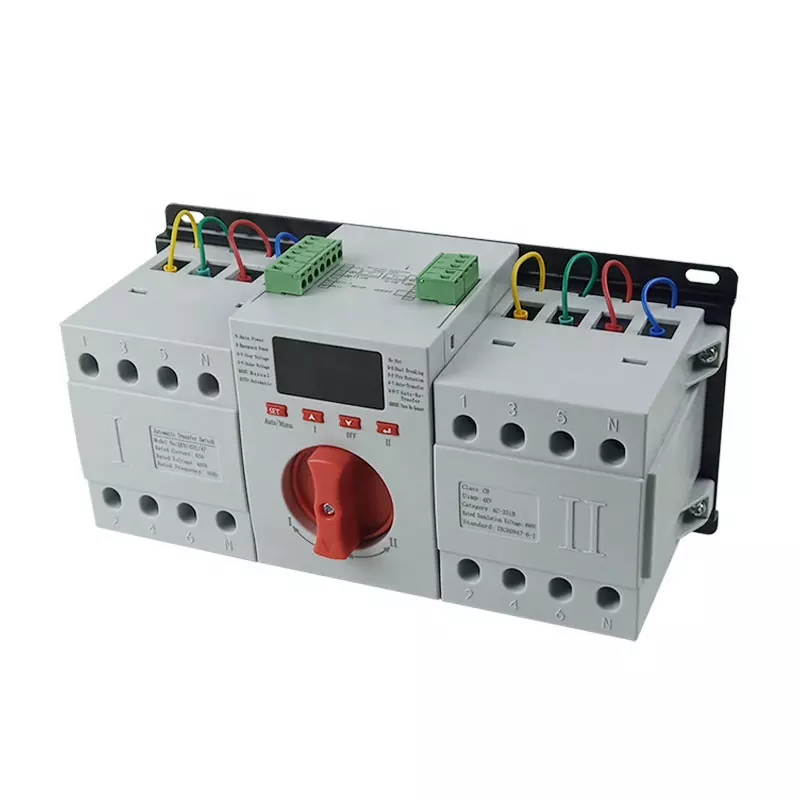

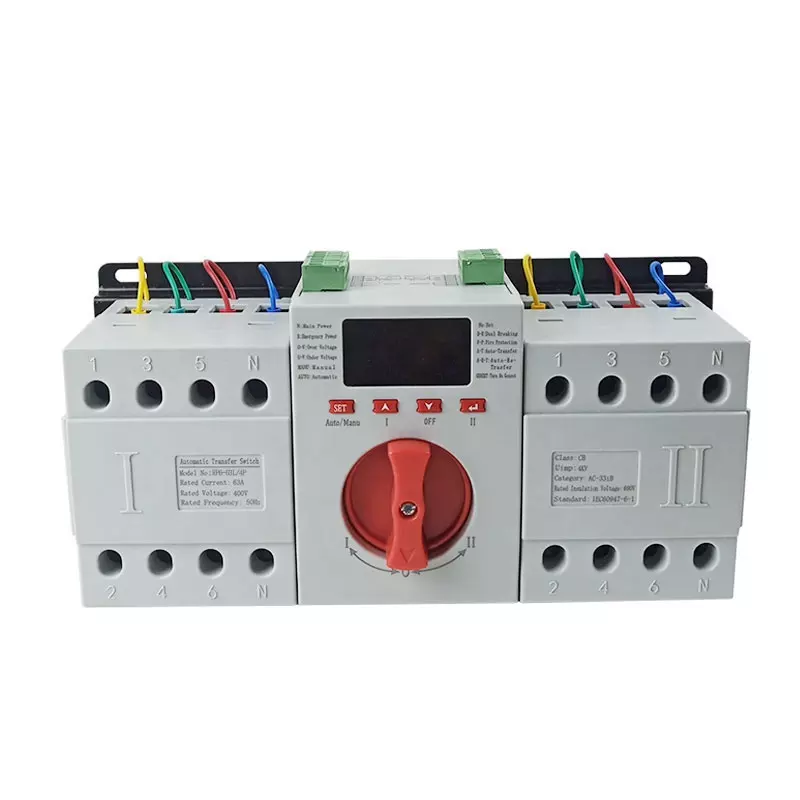

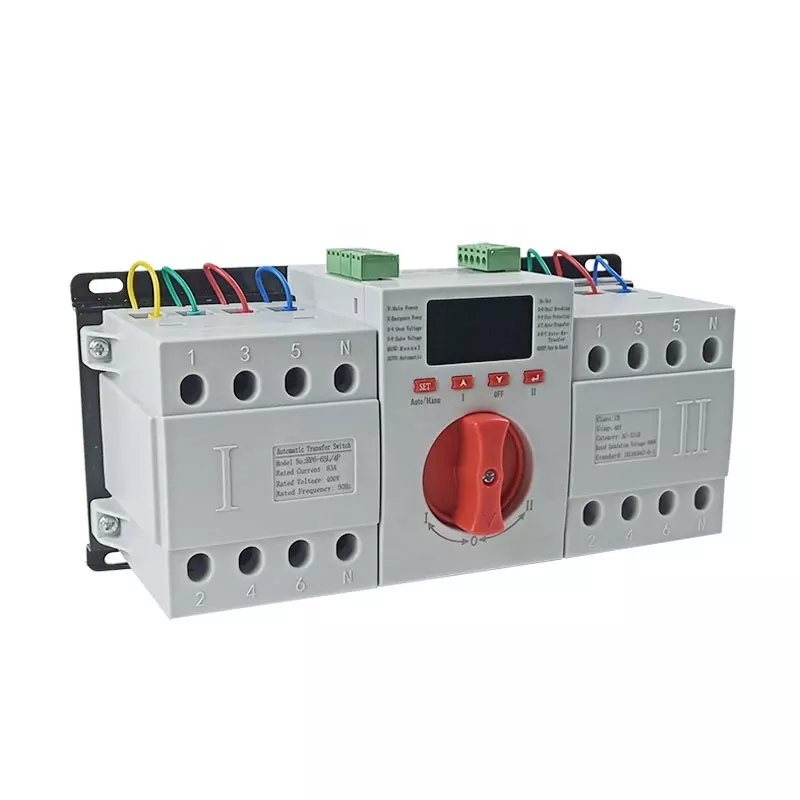

RP6-63L Automatic Transfer Switch
RP6-63L is terminal type ATS. It’s suitable for 3 phases 4 wires (or 1 phase 1 wire) dual power grid with AC 50/60Hz, rated voltage 400V/230V and rated current up to 63A. When one power goes wrong,it will automatic connect one or several load circuits from one power to the other power automatically, to ensure normal power supply of load circuits. The ATS conforms to IEC60947-6-1 and GB/T14048.11
|
Model |
Poles |
Rated Working Voltage Ue(V)ac |
Rated Current In(A) |
Rated Frequency |
Control Voltage(V) |
Transfer Time |
|
RP6-63L |
2P/3P/4P |
400V |
16,20,25,32,40,50,63 |
50/60Hz |
220V |
1.5-3S |
***Non-Standard Control voltage:120V/110V customized.
