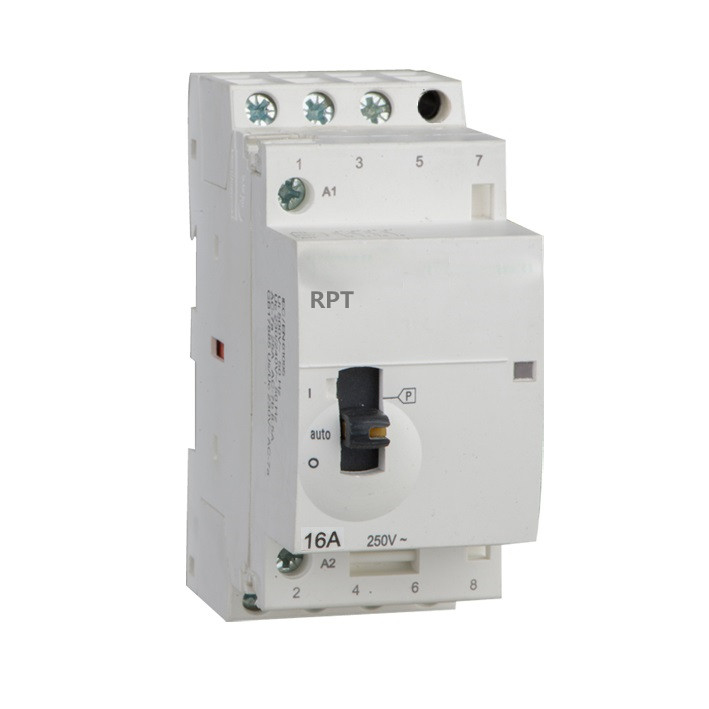

Manual Control Household Contactor RPT-16/20/25A-3P

RPT Series Household Contactor

Summary
RPT Series house hold AC contactor is mainly designed for AC 50Hz or 60Hz circuits with 230V . Rated operating voltage in AC-7a usage ,rated operating voltage up to 230V, rated operating current up to 25A, Rated operating voltage in AC-7b usage , rated current to 10A. Using in breaking capacity below 6kA circuit. For distance connect or break the circuit.Application: for home, apartment, hotel, automatic cut off or connect the power.

PRT Series contactors can be used to remote applications in alternative networks:

Lighting, heating, ventilation, roller blinds, sanitary hot water;

Mechanial ventilation systems, etc;

Load-shedding of priority circuits.

Model specification

Normal working and installation conditions
1. Ambient temperature:-5°C to +40°C,the average temperature no more than
+35°C in 24 hours.
2. Altitude:no more than 2000m.
3. Atmospheric conditions: the relative humidity of the installation place should be no more than 50% when the maximum temperature is +40°C:if under a lower temperature,a higher relative humidity is allowed. The monthly average minimum temperature in the wettest month should not exceed +25°C and the monthly average maximum relative humidity of this month no more than 90%.Besides,the dew on the surface of products caused by temperature change should be taken into consideration.
4. Class of pollution: class 2.
5. Installation condition: class II.

Application instruction
1. Check whether the contactor agrees with the scope of application and the working condition before installation
2. During the process of installing pull down the motion stopping component and put the contactor on the safe orbit then push up the motion-stopping component to fix the contactor on the safe orbit avoid loosening and dropping pull down the] motion-stopping component if you want to remove the contactor.
