LA2-DT0 Contactor Block
- Model Number
- LA2-DT0
- Delay Range
- 0.1-3s 0.1-30s
- Number of the Delay Contacts
- NO+NC
- Certificate
- CE, ISO9001
- Place of Origin
- Zhejiang, China
- Standard
- IEC947-2, VDE0660 & BS5452
1. Silver contact quality
2. 2 years warranty
3. OEM & ODM are both OK
LA2-D Series Contactor Blocks
Application
LA2-D time delay auxiliary contact blocks are combined with LC2-D AC contact & LA1-D anxiliary contact block into be LC3-D star-delta reduced colttage starterto start motor.
Technical Specification
| Type | Delay range | Number of the delay contacts |
| LA2-DT0 LA2-DT2 | 0.1-3s 0.1-30s | NO+NC |
| LA2-DT4 LA2-DRS | 10-180s 0.1-30s | |
| LA2-DR4 LA2-DR2 | 10-180s 0.1-3s |

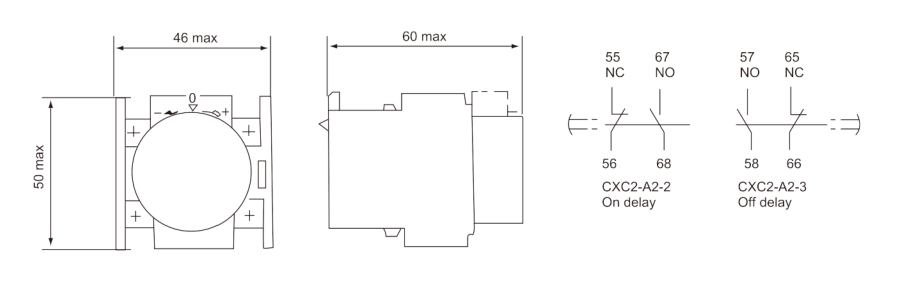

Dimensions
