LC1-F630

Model Number

LC1-F630

Electricity Type

Rated Work Current

630A/1000A

Rated Work Voltage

Up to 1000V

Certificate

CE, ISO9001

Place of Origin

Zhejiang, China

Standard

IEC947-2, VDE0660 & BS5452

1. Silver contact quality 2. 2 years warranty 3. OEM & ODM are both OK

LC1-F Series AC Contactor

Application

LC1-F Series AC Contactor is applicable to the circuits up to the rated voltage 1000V AC 50Hz or 60Hz, rated current up to 780A, for long distance breaking circuit and frequently starting or control the motor. It is also can be used for the control of distribution circuits of rated current from 220A to 1600A.

Specifications

Type		LC1-F115	LC1-F150	LC1-185	LC1-225	LC1-265
Rated operation current(A)	AC-1	115	150	185	225	265
Rated operation current(A)	AC-3	200	250	275	315	350
Standard power rating of 3-phase motors AC-3(KW)	220V	30	40	55	63	75
	380V	55	75	90	110	132
	415V	59	80	100	110	140
	440V	59	80	100	110	140
	450V	75	90	110	129	160
	600V	80	100	110	129	160
	1000V	65	65	100	100	147

Type		LC1-F330	LC1-F400	LC1-500	LC1-630	LC1-780
Rated operation current(A)	AC-1	330	400	500	660	780
Rated operation current(A)	AC-3	400	500	700	1000	1600
Standard power rating of 3-phase motors AC-3(KW)	220V	100	110	147	200	220
	380V	160	200	250	335	400
	415V	180	200	280	375	425
	440V	200	250	295	400	425
	450V	200	257	355	400	450
	600V	200	280	335	450	475
	1000V	160	185	335	450	450

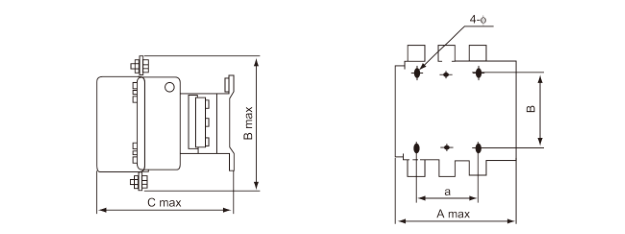

Dimensions

LC1-F630

Type	Amax	Bmax	Cmax	a	B	Φ
CXC2-F115、F150	165	165	172	80	106/120	6.5
CXC2-F185、F250	170	175	182	80	106/120	6.5
CXC2-F225	170	198	80	80	106/120	6.5
CXC2-F265	202	205	215	96	106/120	6.5
CXC2-F330	215	208	220	96	106/120	6.5
